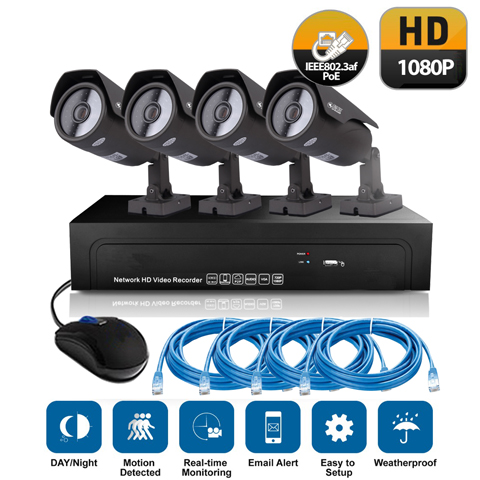

4CH DIY Home/Shop NVR Camera System

DIY Home/Shop NVR Camera System+PoE 960P

4.6/5 rating (7 votes)

NVR-960P, 1.3 megapixel high definition NVR camera system, it's all-in-one camera system pack, includes 4 pieces outdoor bullet cameras and one set 4CH 1080P/960P/720P NVR for video monitoring, recording and streaming applications, as well as 4 bundles of Cat5 Ethernet cable. This system adopts PoE technology to provide low cost, high efficiency, free maintenance video surveillance solution. Apparently, it's an ideal camera system for end-users who seek high definition camera system to protect their home, warehouse, grocery store, workshop.

NVR-960P is HD camera system, 1280x960P HD video monitoring and recording enables you keep eyes on everything you care. The cameras have Infrared illuminators design offer 24 hours day/night monitoring. IP66 weatherproof design can allow camera to be installed in both indoor and outdoor environment. The included NVR supports multiply recording modes for flexible video recording, has one SATA HDD bay for internal video storage, and eSATA interface for unlimited video storage expansion.

This system is truly a plug-and-play system, it adopts "Peer to Peer" (P2P) technology for hassle-free network connection. Different from traditional IP camera system, Unifore's NVR system can automatically connect to Internet without DDNS, port forwarding settings. Just follow the setup wizard, you can setup the system within 15 minutes.

Being compatible with Onvif standard, users can extend the system with third-party's cameras and NVRs, as well as VMS software. Currently, there are up to 5,000 cameras and NVRs based on this standard.

Key Features for NVR-960P

  • P2P, plug-n-play IP NVR camera system
  • 4x camera system, 1280x960 (1.3MP) monitoring/recording/playback
  • Multi-recording modes support full-time, manual, schedule, motion & event detection
  • HDMI and VGA video output for 1080P full HD monitoring
  • 1x SATA HDD bay, maximum 4TB
  • 1x eSATA for unlimited storage expansion
  • IEEE802.3af Power-over-Ethernet (PoE)
  • 4x weatherproof compact size IP bullet camera
  • 36pcs Infrared illuminators, IR range reaches up to 20 meters
  • Equipped with 3.6mm lens to provide approximate 72 degree field of view
  • Remote live view by PC browser, PC software, Smartphone, Tablet
  • Third-party camera and NVR interoperity, Onvif standard

HD Digital Video Monitoring

It's time to abandon out-dated analog system, and embrace the digital era. The IP camera system can not only bring you high definition video, but also allows user to access and store the video in anywhere.

IP vs Analog solution

4x HD IP Bullet Camera + PoE

Included 4x HD camera which adopts high quality aluminum structure for durable usage. The camera has built-in PoE module to support IEEE802.3af Power over Ethernet technology. They can directly connect to NVR, no router and PoE switch required. Camera adopts 1.3 megapixel progressive scan CMOS image sensor to provide very fine images without motion blur.

4x IP PoE Cameras

1 Set 4CH 1080P/960P NVR

The pack includes one set 4 channel NVR which has four PoE RJ45 ports and 1 RJ45 port. It supports total 32 Mbps bandwidth, allowing video recording and streaming in full HD 1080P resolution. It can provide the power and data to IP camera through the Ethernet cable (also included).

4CH HD 1080P NVR with PoE

Remote view from PC and Smartphone

The system has web server, supports multiply network protocols including TCP/IP, RSTP, uPnP and more. Users can access the system through Web browsers, PC client software, Smartphone App (Android, IOS).

Remote view from PC and smartphone

Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.

What's in the box?

  • 4 pieces 1.3MP IP Cameras (Low illumination)
  • 1 set 960P PoE NVR
  • 1 pc AC/DC adapter for NVR
  • 1 pc USB mouse for NVR
  • 4 bundles Ethernet (Cat5) cables (20M)
  • 4 bags screws for installation
  • 1 CD (manual and software)

Product Photo Gallery

4CH PoE Mini NVR 720P/960P Rear Panel
4CH PoE Mini NVR 720P/960P Side View

Technical Parameters

Model No.  NVR-960P NVR-720P
Camera  1.3MP IP camera with PoE  1.0MP IP camera with PoE
NVR System 4CH 960P PoE NVR  4CH 720P PoE NVR
Camera Effective Pixels 1.3 Megapixels 1.0 Mega Pixels
Main stream:1280*960;1280*720 Main stream:1280*720
Sub stream:704*576 Sub stream:704*576
Frames Rates PAL:25fps(1280*960)/(1280*720) PAL:25fps(1280*720)
NTSC:30fps(1280*960)/(1280*720) NTSC:30fps(1280*720)
Image Sensor 1/3" Aptina AR0130 CMOS Sensor 1/4" OV9712 CMOS Sensor
1.3 megapixel resolution (1280H*960V) 1.0 megapixel resolution (1280*800)
DSP Dual core   32-bit DSP Dual core   32-bit DSP
(Hi3518C) (Hi3518C)
Min. Illumination Color   [email protected] Color   [email protected]
  B/W   0.001 [email protected]   B/W   0.08 [email protected]
Compression  H.264 Main profile H.264 Main profile
NVR Recording 4x960P (1280x960P) 4x720P (1280x720P)
Recording Mode Manual> Alarm> Motion detection> Schedule
Video save HDD. Network
Space CIF: 5G / day / channel D1: 20G / day / channel 720P: 40G / day /channel 1080P: 80 G/ day/channel
Audio 1CH RCA Input/1CH RCA Output
Video inquiry Point-in-time retrieval, calendar search, event search, channel search
Backup mode Network backup, USB mobile HDD, USB Burner, DVD-RAW burning
Video output 1CH BNC,1CH VGA,1CH HDMI (1920*1080P)
Network interface RJ45 10M/100M/1000M
HDD 1 SATA HDD (Max.4TB)
PTZ control N/A
USB interface 2*USB interface
Power supply DC48V PoE standard power supply
Size 215(W)x215(L)x45(H)mm
