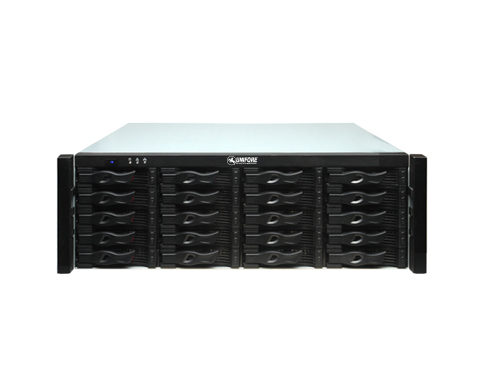

4K H.265 Network Video Recorder

36CH 4K/64CH 5MP/128CH 1080P/256CH 720P H.265 NVR

3.6/5 rating (5 votes)

EN85xx series 4K network video recorders are robust security NVRs for middle and large IP video surveillance system. This newly design NVR supports H.264 and H.265 video compression standard, has capability to work with 4K UHD network cameras. Additionally, it has 20 HDD bay to provide you huge video recording/storage capacity. The 4U rack design allow you install the NVR easily in any standard rack shelves.

It includes with rich interface design, including 10/100/1000M (1gbit) LAN interface to offer maximum bandwidth for video streaming, 2x USB 3.0 ports for super-fast speed data transferring, 2x USB 2.0 ports, and 4x eSATA ports to extend unlimited video storage capacity, as well as alarm I/O to integrate with other security systems for offering integrated solution. Lastly, it is equipped with 1CH VGA and 1CH HDMI video outputs, it can work with HDTV monitors seamlessly.

This H.265 NVR offers four different resolution modes include 256 channel 720p/960p, 128 channel full HD 1080p, 64 channel 5MP (2592x1944), 36 channel 4K UHD (3840x2160) video recording. It supports multiple recording modes to offer flexible video recording solution. Furthermore, this NVR supports several different cloud technologies (P2P) including Goolink, Danale, Tutk etc to offer plug-and-play Internet access.

4K UHD Video Recording

The latest NVR supports 8 megapixel IP cameras with 4K UHD resolution. The 4K UHD resolution is four times higher than the resolution of full HD 1080p. The 4K video surveillance is suitable for professional critical IP video surveillance applications which require superior image clarity and sensitivity. The 4K image details can not only provide extreme fine details, but also allows can allow user to simultaneously monitor a large area. 4K is the future-proof trend in global video surveillance industry.

EN85xx supports the following recording resolutions:

  • 36 channel 8MP/4K/2160P (3840x2160) @1080fps
  • 64 channel 5MP (2592x1944) @1920fps
  • 128 channel Full HD/1080p (1920x1080) @3840fps
  • 256 channel 720p/960p (1280x960) @7680fps
DV vs 720p vs 1080p vs 2K vs 4K resolution
DV vs 720p vs 1080p vs 2K vs 4K resolution

H.265/HEVC Video Recording & Decoding

Greatly reduced the bandwidth and video storage, this NVR utilizes H.265/HEVC technology to offer high efficient video encoding and decoding capability. Additionally, it is back-compatible with legacy video compression standard H.264/AVC. No matter whether you want to setup a ultra high resolution video surveillance system or upgrading your existing IP surveillance system, this NVR is the ideal choice.

HEVC Encoding Efficiency
HEVC Encoding Efficiency

20 HDD Bay for video storage

The new professional NVR provides the perfect platform for large-capacity video recording/storage capacity with the fault-tolerant data protection mechanisms for the video surveillance system, protect clients data security ,support various data modes such as RAID0,1,5,6,10. This NVR can be inserted with 20 hot-swappable SAS/SATA drive bays which offer a maximum 80 terabytes of storage per server. Additionally, it is equipped with 4x eSATA ports, expandable to unlimited storage capacity.

Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.

4K H.265 NVR Highlights

    • High-performance hardware based on Hisilicon solution
    • Embedded LINUX operating system
    • Support H.265/HEVC and H.264/AVC video standard
    • Support HDDs hot-swap non-stop service when replace the HDDs
    • Setup wizard for easy operation
    • Recording modes: manual, schedule, motion detection, alarm detection
    • Video searching by manual, calendar, timeline, events
    • 15x digital zoom function, using mouse to select region for enlarge
    • Support USB 3.0 and USB 2.0 interface
    • Local VGA and HDMI video output
    • Include 6 10/100/1000M self-adaptive LAN port + 1 10000M self-adaptive LAN port
    • Include RS485 port to work with PTZ network cameras
    • Include 4CH alarm input and 4CH alarm output
    • Comply ONVIF standard (High profile S, High profile G) to work with IP cameras from more than 200 different manufacturers
    • Aluminum alloy slide drawer-type HDD rack

Technical Information

Model EN85xx
General
IPC Channel 36 CH/ 64 CH/ 128 CH/ 256CH
Stream quality 36×(3840*2160/4K UHD/8MP), 64×(2592*1944/5MP), 128x (1920*1080/2MP), 256x (1280*960/960P/720p)
Display/Video Resolution 4K/5MP/1080P/960P/720P
Recording Mode Manual, Full Time, Scheduled, Motion Detection, Alarm Event
Playback 1/ 4/ 9/ 16 channel playback simultaneously
Recording storage 20x HDD bays, max. 80 terabytes (TB)
Backup method External HDD, E-SATA HDD, USB disc, Network
Remotely surveillance
IE browser Support LAN management, client management and remote IE visit
Dual stream Individual setting by each channel
Mobile Phone Surveillance Support (iPhone,Windows Mobile,BlackBerry,Symbian,Android) operation system
Wireless Support 3G and WIFI
Compatibility

ONVIF (High profile S, High profile G), RTSP

Mouse Zoom Click any area and zoom in or zoom out on the image by mouse
Motion Detection Motion detection area selection, sensitivity 6 grade selection
Search  By time (calendar), backup, by event,
IP video input 6 10/100/1000M self-adaptive LAN port +  1 10000M self-adaptive LAN port
Video Output 1CH HDTV HDMI, 1CH VGA,
Video compression H.264/AVC  H.265/HEVC
Audio Compression Standard G.711
Audio Output 1CH BNC
Audio Talk Two-way intercom
Alarm Input 4CH
Alarm Output 4CH
Network RJ45 Ethernet port(10M/100M/1000M)
RS485 Full duplex RS485, Support 19 PTZ protocols
USB 2 USB 3.0 ports, 2 USB 2.0 ports
E-SATA 4 External SATA port
SATA HDD Ports 20 SATA HDD ports
Electrical
Power Supply ATX110-220V 500W 50-60Hz
Consumption ≤50W without HDD
Mechanical
Dimensions 440mm*432mm*178mm
Weight 18.5kg
Ingress protection None/Indoor usage
Environmental
Protection Class Indoor
Operating Temperature -10°C to +55°C
Operating Humidity 20% ~ 80% (non-condensing)
