4CH/8CH Super Mini NVR

4CH/8CH Super Mini NVR for Home/Office

3.8/5 rating (48 votes)

Super Mini NVR is the most affordable network video recorder which is compliant with Onvif IP cameras. Super Mini NVR comes with two models EN4243, which is a 4 channel NVR, and EN8243 which is a 8 channel NVR. The NVR is based on Hisilicon architecture offering reliable video recording and web server function with its optimum data processing algorithm.

EN4243/EN8243 supports multi-channel full HD video recording at select-able resolution 1080P, 960P, 720P. Fully compatible with industrial standard H.264 codec IP cameras, providing high definition video display and record, playback.

EN4243 and EN8243 are advanced IP digital recorder, supports dual stream technology and flexible recording modes including full-time, manual, schedule, motion detection, alarm event. Also supports different video playback features which are based on time frame, event. Video files can be retrieved easily. Video footage can be recorded on eSATA HDD, USB HDD, or upload to remote server. Included setup wizard, allow user to setup network recorder with ease.

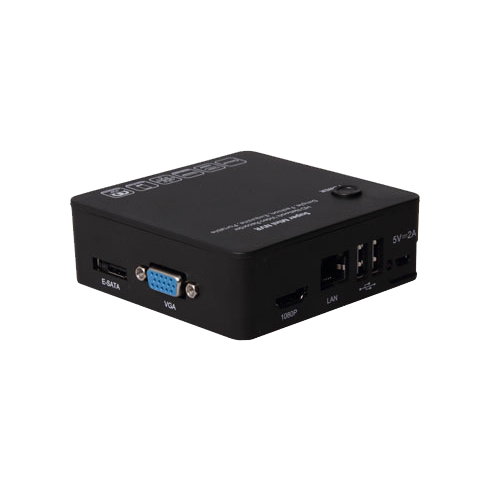

Super Mini NVR is equipped with VGA & HDMI video output interface, fully compatible with both traditional VGA monitor and HDTV monitor/display. Two 2.0 USB interface enables user to operate the system with a USB mouse, also can let security guard easily backup the file through U-Disk. This model doesn't have SATA port, but it has eSATA interface, which enable it to connect a eSATA HDD/SDD for unlimited storage capacity.

Compliant with universal surveillance standard Onvif, this NVR can work with up to 5,000 Onvif certified IP cameras and software from third-party manufacturers (including Axis, BOSCH, Canon, Dahua, Hikvision, Honeywell, Launch, Panasonic, Samsung, Vivotek and more).

Video Display/Record/Playback

  • 4CH recording [email protected], [email protected], [email protected]
  • 8CH recording [email protected], [email protected], [email protected]
  • Local display resolution HDMI 1920x1080
  • Local playback [email protected], [email protected], [email protected]

HD NVR Features

  • Setup wizard for easy operation
  • Automatically/Manually add IP cameras
  • Recording modes: manual, schedule, motion detection, alarm detection
  • Search video by manual, calender, timeline, events
  • 15x digital zoom function, using mouse to select region for enlarge
  • e-SATA port design to extend unlimited storage
  • Advanced video backup, supporting USB, U-disc, eSATA HDD, Network
  • Free central monitoring station software

HD NVR Network Features

  • Network protocols HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
  • Maximum 10 users online
  • Support setup and access through Internet Browsers (IE, Chrome, Safari, Firefox)
  • Remote live view through Smartphone and Tablet from anywhere.
  • Plug-n-play, P2P
  • Support USB Wi-Fi Dongle and USB 3G dongle wireless connection
  • 3G dongle: ZTE-MF100, HUAWEI-E156G, VITION-E1916, ZTE-AC582, STRONGRISING-ESUV, HUAWEI-E153, HUAWEI-EC1261, ZTE-AD3812

Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.

PRODUCT PHOTOS GALLERY

4CH/8CH Super Mini NVR - Black Color 4CH/8CH Super Mini NVR - Black Color 4CH/8CH Super Mini NVR - White Color 4CH/8CH Super Mini NVR - White Color 4CH/8CH Super Mini NVR - White Color 4CH/8CH Super Mini NVR - White Color 4CH/8CH Super Mini NVR - White Color
4CH/8CH Super Mini NVR
4CH/8CH Super Mini NVR

Technical Specification

Model EN4243/EN8243
General
IPC Channel 4 Channel/ 8 Channel
Stream quality 1080P(1920×1080)30fps/960P/(1280×960)/720P (1280×720)30fps
Video Resolution 1080P(1920×1080)30fps/960P/(1280×960)/720P (1280×720)30fps 1~30fps
Recording Mode Manual, Full Time, Scheduled, Motion Detection, Alarm Event
Playback 4CH playback in 720/960P mode;1CH 1080P playback in 1080P mode
Recording storage One e-SATA port
Backup method USB HDD, e-SATA HDD, U-disc, Network
Remotely surveillance
IE browser Support LAN management, client management and remote IE visit
Dual stream Individual setting by each channel
Mobile Phone Surveillance Support (iPhone,Windows Mobile,BlackBerry,Symbian,Android) operation system
Wireless Support 3G and WIFI
Compatibility

Onvif 2.0, compatible third-party IP cameras, DVS.

Mouse Zoom 15x digital zoom, click any area and zoom in or zoom out on the image by mouse
Motion Detection Motion detection area selection, sensitivity 6 grade selection
Search  By time (calender), backup, by event,
IP video input 4 Channel 1080P/960P/720P IP camera inputs
Video Output HDTV HDMI, VGA
Video compression H.264
Audio Compression Standard G.711
Audio Output N/A
Audio Talk Two-way intercom
Alarm Input N/A
Alarm Output N/A
Network RJ45 Ethernet port(10M/100M)
RS485 N/A
USB Two USB 2.0 ports
E-SATA One External SATA port
SATA HDD Ports Two SATA HDD ports
Electrical
Power Supply DC5V 2A
Consumption ≤10W(without HDD)
Mechanical
Dimensions  88mm×88mm×32mm
Weight 250g
Ingress protection None/Indoor usage
Connectors RJ-45 10BaseT/100BaseTX, VGA, HDMI, USB
Environmental
Protection Class Indoor/Outdoor
Operating Temperature -10°C to 55°C
Operating Humidity 20% ~ 80% (non-condensing)
