BC-HB12 / BC-HB14

Wire-free Security Camera System Kit (Homebas + Outdoor Cameras) for Residential/Commercial Application

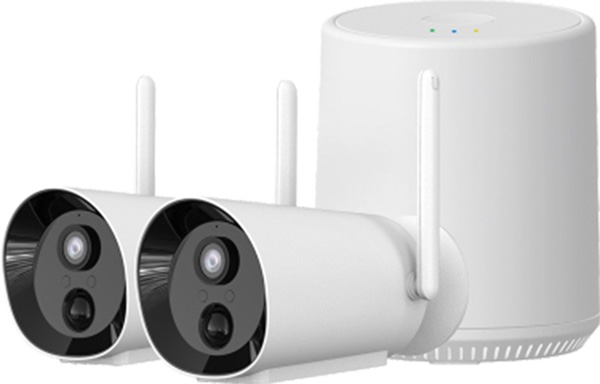

Tuya Wire-free Outdoor Security Camera Pack with HomeBase BC-HB12 / BC-HB14

BC-HB12 / BC-HB14, high quality and reliable security camera kit with a Homebase, including 2x/4x outdoor IP66 rated security cameras that supports long range viewing, built-in PIR motion sensor to offer accurate motion detection, day&night video surveillance, new generation Wi-Fi technology, transmission range up to 300 meters, built-in 5200mA 18650 batteries supporting completely wire-free installation.

Tuya Outdoor Wireless Camera System with HomeBase BC-HB12 / BC-HB14
  • The HomeBase is connected with router via network cable; therefore the system will never get disconnected.
  • Up to 984ft/300m long wireless transmission distance between HomeBase and cameras
  • The HomeBase is equipped with TF card. Images are stored locally without privacy concerns.
  • Support Amazon Alexa smart screen; users can directly voice control Alexa to show the camera and talk with people in the camera
  • Support Tuya; manage all your smart devices in one APP
  • 5200/14100mA battery optional, long standby time for several months (alarm wakes up cameras 10 times / day, 10 seconds / time)
  • PIR detection zone: 6.5~9.8ft / 2~3m installation distance from the ground; 33ft / 10m detection distance 33ft/10m infrared night vision distance
  • Motion detection &PIR human siren can be selected
  • 3 working modes: power saving, best monitoring, self-define
  • Multi users sharing; timeline playback, easy to retrieve
  • Cloud storage
  • IP66 waterproof

Specification

 Model number: BC-HB12 (HomeBase x1, Cameras x2) BC-HB14 (HomeBase x1, Cameras x4)

HomeBase

  • Operation OS: Embedded Linux operating system
  • Wireless WiFi: Router WiFi high power chip set
  • WiFi distance: 984ft/300m in open space
  • Camera numbers: 1~4 cameras
  • Camera adding: Via paring button on HomeBase
  • Interface: Power supply, USB, RJ-45
  • Speaker: 8Ω2W Hi-Fi Speaker
  • Storage: Built in 32G TF Card
  • Alarm: Loud alarm sound on detecting human
  • Internet access: Connect via network cable, then use APP to scan QR code
  • APP: TuyaSmart / Smart Life
  • Amazon Alexa: Support
  • Multi-users: Yes, can be shared by 5 users maximum
  • Recording and playback: Support timeline, video file playback and download
  • Working mode: At home/out/defense/etc
  • Size: 95mm x 95mm x 116mm
  • Voltage and current: 12V1A/190ma
  • Power consumption: 2.5W

Wire-free Camera

  • Operation System: RTOS low power consumption
  • Resolution: 1080P,1920X1080
  • Chipset: JZ
  • Image sensor: 1/2.7 low illumination CMOS
  • Lens: 2.8mm lens, 100° angle of view
  • Wireless/Wii-Fi: PP wireless transmission
  • PIR motion detection: 26-33ft / 8-10m distance, 110° viewing angle, 4.9ft /1.5m installation distance from the ground
  • Current on sleep mode: 380uA
  • Working current: 220mA
  • Infrared night vision: 6 units LED, 0.8W, infrared distance 33ft/10m
  • IR-CUT: Yes, day & night, color & black white switching
  • Minimum illumination: 0 LUX/F1.2 while IR is on
  • Audio encoding: G.711
  • Audio input: High sensitivity microphone
  • Audio output: Hi-Fi Speaker
  • Audible alarm: Loud alarm sound can be triggered when human is detected
  • Power on/off switch: Yes
  • Type-C interface: Yes, chargeable
  • Battery: Yes, with 18650 5200mA rechargeable battery, 14100mA optional
  • Reset button: Yes
  • Waterproof: IP66
  • Bracket: Yes, removable design, convenient for charging
  • App: TuyaSmart/ Smart Life
  • Amazon Alexa: Support
  • Power-save mode: Power saving/best monitoring/self-define
  • Size: 85mm x 122mm x 82mm
