Tuya Smart Background Music System/Amplifier/Control Panel

Tuya U9 smart background music amplifier/system adopts the 8 inch HD IPS screen design, it’s a smart tablet that utilizing 4 core ARM processors with 2GB RAM and 16GB ROM. The system has embedded with Android 6.0 OS, supporting DLNA, Airplay, Qplay…etc video casting/mirroring protocols.

The background music system can be easily installed inside a dual-gang box (86mm*86mm dimension), it includes microphone, supporting Wi-Fi wireless and Bluetooth connection, including HDMI output to connect with your big screens such as TV, monitor, display.

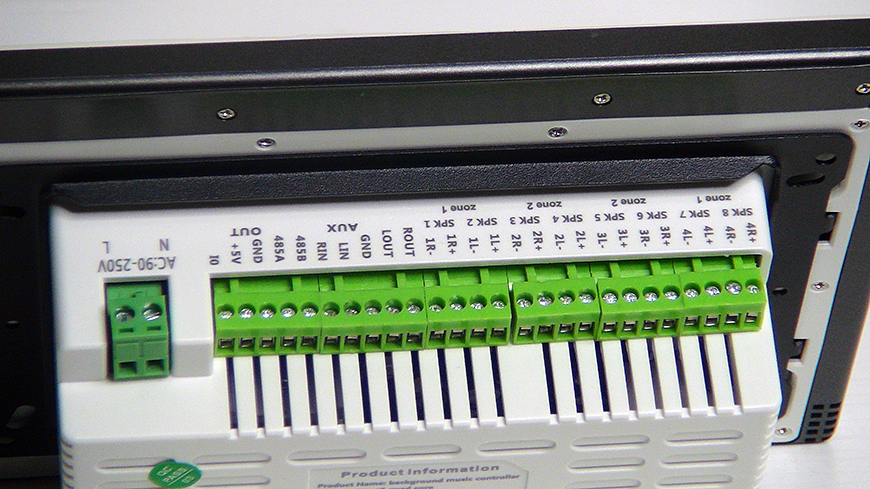

Tuya U9 is a background music player, it has 8 channel audio outputs, can connect up to 8 speakers, total 120W power rate. It supports two zones, can play and control the music separately. Additionally, it has two audio inputs, can connect with other audio sources.

The smart music system supports Tuya app, users can remotely control the system through Tuya Smart app.

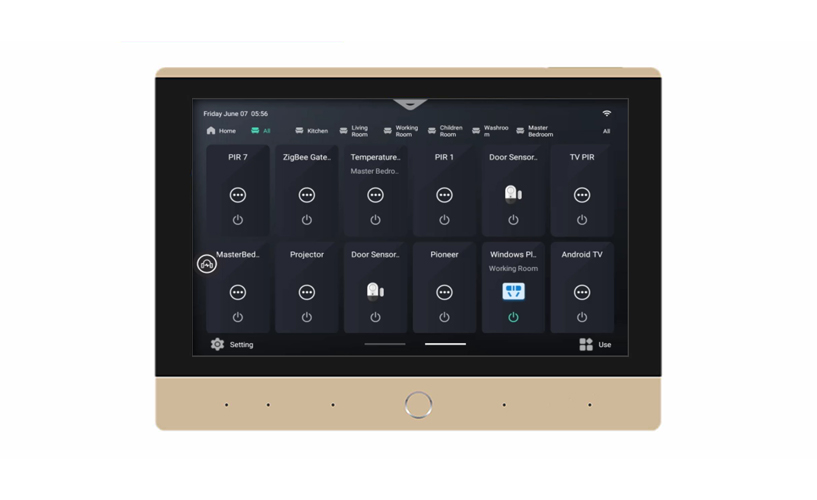

U9 is not only a music amplifier system, but also a smart hub for your home automation system.  You're able to control your smart devices through the U9 hub. The product can link different platforms including Tuya, Mijia, AQARA, LifeSmart. So long as you link your account, you're able to control all your devices and scenes via this smart hub.

Moreover, you're able to control the background music system through Tuya Smart anywhere anytime.

Product Specification:

• Model: TUYA-U9
• Power input: AC90~240V
• Display: 8-inch IPS HD screen
• Display resolution: 1280*800
• Video output: HDMI
• OS: Android 6.0
• CPU: Rockchip Quad-Core ARM
• Hardware: 2GB RAM
• Storage: 16GB ROM
• Audio Output: 8*30W
• Audio impedance: 8Ohm
• Audio Input: 2-channels
• Control interface: RS485
• Wi-Fi: IEEE802.11 b/g/n 2.4G
• Ethernet: RJ45 10/100Mbps
• Bluetooth: 4.0 10 meters
• External storage: microSD card slot (max. 128GB)
• IoT platforms: Tuya, Mijia, Aqara, LifeSmart
• Color: Grey/Champagne
• Tablet dimension: 195*144*5.8mm
• Amplifier dimension: 170*110*60mm
