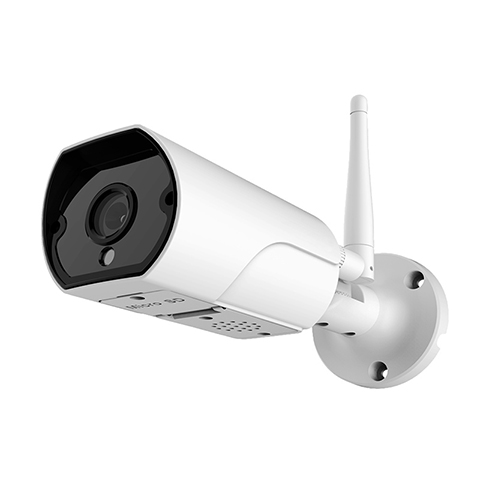

Wireless 1080p security camera smart alarm detection

A1100 is a stylish aesthetic design security camera adopts IP66 rated weatherproof enclosure to work in harsh weather condition. Unlike traditional security cameras, new camera now has built-in waterproof microphone and speaker that offering you not only video monitoring but also audio monitoring and 2-way audio intercom. Featuring video analysis based motion detection, Apart from receiving instant push notification, the camera will turn on siren to make noisy alarming sound to scare intruders away or alert people. Deploying A1100 outdoor camera you can proactively protect your premises that can’t be offered by conventional network cameras.

The camera supports sensitivity adjustable provides lower false detection ratio. It’s a true day&night camera that built-in ICR filter providing unnatural light filtering performance therefore capturing vivid color video no IR light pollution. It’s equipped with 30pcs black color Infrared LEDs, that not only provide up to 30 meters IR range, but also reducing IR-bleeding effect when operating under dim or no-light conditions. Leveraging 2-megapixel progressive scan CMOS image sensor and Hisilicon Hi3518EV200 System-on-Chip, the camera delivers 1080p resolution stream requiring lower bandwidth because of implement of enhanced H.264/AVC compression technologies.

A1100 is tailored to provide reliable and flexible video surveillance solution for home or small business. Supporting both wired Ethernet and Wi-Fi wireless network connection, it provides a great flexibility for installation. In addition to connecting it with your router, it has capability to work standalone. The camera supports standalone mode, smartphone can directly access camera, requiring no router/Internet. It helps users to achieve video surveillance in remote location where Internet is not accessible. Under standalone mode, the camera still can record HD video. The camera offers on-board storage/recording up to 128GB that help users to setup a camera system that doesn’t use network video recorder.

Supporting p2p protocol for super easy remote view, while stay compatible with Onvif and RTSP specification. The camera is favored by people among end-users, CCTV installers and security integrators. The camera supports remote setup and viewing through Android or iOS smartphone, includes CMSClient software can manage multiple cameras on PC. The camera also can be integrated with your IP video surveillance system and seamlessly establish communication with your NVR, NAS, Stream Server.

Specification

• Model: A1100
• Operating system: embedded Linux OS
• Hardware: Smartsens SC2235 + Hisilicon Hi3518EV200
• Software: Yoosee App and CMSClient PC software (Win 32/64bit OS)
• Power input: DC12V 2A (AC/DC power adapter included)
• Application: indoor & outdoor (IP66 ingress protection)
• Alarm function: send instant push notification to 3 users
• Snapshot: send snapshot to multiple emails
• Motion detection: video pixel analysis based 6-level adjustable
• Network connection: Wi-Fi 2.4GHz and 10/100M RJ45 Ethernet
• Recording mode: manual/24 hours, schedule, motion detection activated
• Video storage: edge storage up to 128GB (memory card is not included)
• Video recording: memory card, PC, smartphone
• Security: sharing algorithm prevent brute force hacking
• Remote view: App, PC software, NVR
• Lens: 3.6mm approx. 90°viewing angle
• IR distance: 30pcs black color IR LEDs, IR range 20-30 meters
• Mini.illumination: color 0.05Lux; B/W 0.01Lux
• Frame rate: 1-25fps network adaptive
• Effective Resolution: 1920x1080
• Video compression: Enhanced H.264/AVC

Product Details

1. 2MP IR-corrected lens, 2. 30pcs black IR illuminators, 3. External Wi-Fi antenna, 4. Wall bracket, 5. Speaker, 6. MicroSD/SDHC TF slot, 7. Photo-resistor, 8. Mechanical ICR filter

Product Structure & Dimension
