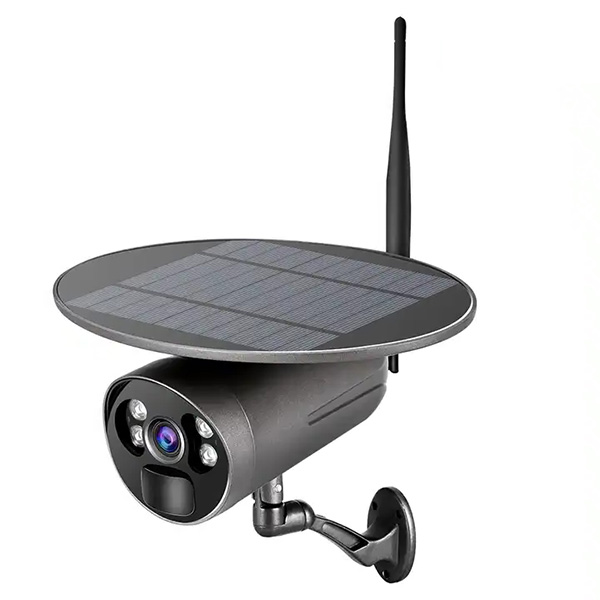

STW-5L

Solar panel powered wireless security camera (bullet type) adopting rugged aluminum-alloy enclosure, fully sealed IP66 waterproof design, better suitable for outdoor video surveillance applications. Including 3.5 Watt solar panel to supply the main power, 10000mAH rechargeable battery for 24/7 operation. Relying on Passive Infrared motion sensor to offer accurate motion detection, immune to bugs and non-human objects. Dual lighting system enables the camera to not only deter intruders but also capture color image at night.

Product Highlight

• No network cable connection, no power cable connection
• Completely wire-free installation, maintenance-free
• Hassle-free installation, supporting both DIY and professional installation
• 10000mAH battery with great redundancy to handle challenging weather conditions
• Aluminum-alloy enclosure with better heat dissipation and long life span
• 2MP 1080p FHD video resolution, crystal clear image
• Dual lighting system can capture color image at night
• Built-in microphone and speaker to support 2-way audio intercom
• Ultra low power consumption, camera works for continuous rainy/cloudy days
• Built-in PIR motion sensor to provide accurate motion detection
• Recording video on internal memory card (microSD card slot, max. 128GB)
• Users can subscribe cloud storage plans
• Remote view anywhere anytime
• Compatible with Tuya Smart app, one app controls all your smart devices
• Google Assistant and Amazon Alexa integration

TECHNICAL SPECIFICATION

• Model Number: SQW-5L
• App: Tuya Smart (iOS 10.0, Android 5.0 above)
• Smart detection: PIR based Motion detection, Humanoid detection
• Image sensor: ½.9” progressive scan CMOS image sensor (GalaxyCore GC2063)
• SoC/Main processor: Ingenic T31 High-performance SoC
• Operating system: Huawel/Hisilicon Lite OS
• Resolution: 2-Megapixel 1080p FHD
• Camera lens: 3.6mm F2.8 wide angle lens (FOV 120 degree)
• Video stream: Main stream 2MP@30fps; Sub-stream VGA@30fps
• Wireless/Wi-Fi: IEEE802.11 b/g/n 300Mbps 2.4GHz
• Night vision: Dual-lighting (Infrared plus white light)
• Infrared wavelength: 850nm
• Night vision range: max. 15-30 meters
• Battery 10000mAH rechargeable Lithium battery
• Battery charging: 3.5 Watt solar panel, microUSB port
• Solar panel: 3.5 Watt
• DC power input: 5V DC, 1~2A
• Wake up: <=15s
• Audio codec: AAC and G.726
• Audio input: built-in a microphone (-38dB sensitivity)
• Audio output: built-in a speaker (4Ohm 8 watt)
• Video codec: H.264/H.265
• Security: AES128 encryption
• Storage/Recording: built-in microSD card/TF card slot (max. 128GB)
• Cloud storage: optional
• Ingress protection: IP66
• Application: indoor/outdoor
• Enclosure material: Aluminum-alloy (metal)
• Operating temperature: -20°C ~ 60°C
