SQW-2

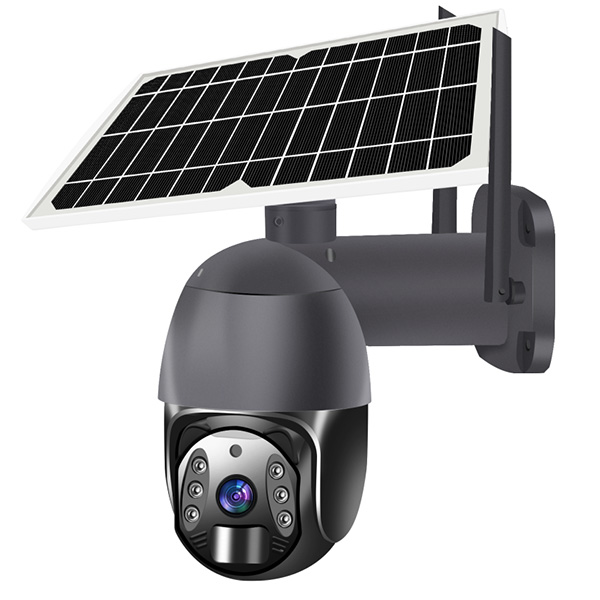

Tuya solar panel powered wireless security camera based on Ingenic T31 SoC and SmartSens SC2335, Tuya IoT platform for quick setup and fast connection, compatible Tuya Smart and Smart Life app, 10 Watt silicon solar panel plus 21700mAH rechargeable battery, PIR sensor to provide accurate motion detection, humanoid detection, suitable for both indoor and outdoor application.

Product highlight

• Based on global leading IoT platform – Tuya, compatible Tuya Smart /Smart Life app
• Alexa and Google assistant voice integration
• 10W high conversion rate silicon solar panel, providing clean energy
• Built-in 21700mAH super high capacity rechargeable battery
• Completely wire-free and maintenance-free, hassle-free installation
• Day and night video surveillance
• Passive Infrared sensor to offer accurate motion detection
• Built-in microphone and speaker, supporting 2-way audio intercom
• 3-Megapixel resolution (2K), superb image quality
• H.264/H.265 for smooth video streaming, ultra low video latency
• Built-in microSD/SDHC/SDHX card slot to record video
• Pan and tilt rotation to cover large area
• Fully sealed design to meet IP66 ingress protection standard

Technical Specification

• Model Number: SQW-2
• App: Tuya Smart (iOS 10.0, Android 5.0 above)
• Smart detection: PIR based Motion detection, Humanoid detection
• Image sensor: ½.8” progressive scan CMOS image sensor (SmartSens SC2335)
• SoC/Main processor: Ingenic T31 High-performance SoC
• Operating system: Huawel/Hisilicon Lite OS
• Resolution: 3-Megapixel
• Camera lens: 3.6mm F2.8 wide angle lens (FOV 120 degree)
• Video stream: Main stream 3MP@15fps; Sub-stream VGA@30fps
• Wireless/Wi-Fi: IEEE802.11 b/g/n 300Mbps 2.4GHz
• Night vision: Dual-lighting (Infrared plus white light)
• Infrared wavelength: 850nm
• Night vision range: max. 15-30 meters
• Battery: 4 pcs 21700 rechargeable Lithium battery
• Battery charging: 10Watt solar panel, microUSB port
• Solar panel: 10 Watt
• Wake up: <=15s
• Audio codec: AAC and G.726
• Audio input: built-in a microphone (-38dB sensitivity)
• Audio output: built-in a speaker (4Ohm 8 watt)
• Video codec: H.264/H.265
• Security: AES128 encryption
• Pan/Tilt rotation: 320° pan and 90° vertical
• Storage/Recording: built-in microSD card/TF card slot (max. 128GB)
• Cloud storage: optional
• Ingress protection: IP66
• Application: indoor/outdoor
• Enclosure material: engineer plastic
• Operating temperature: -20°C ~ 60°C
