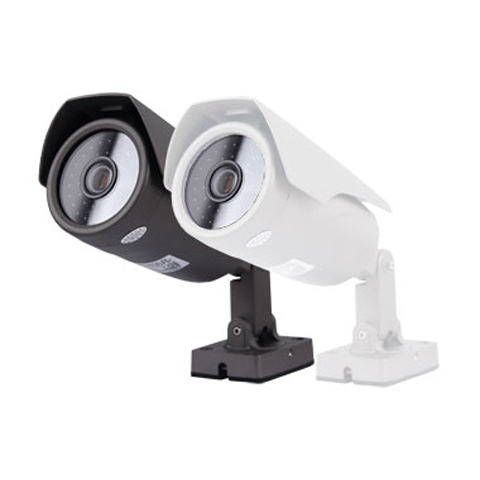

Small Outdoor IP Camera

Small Outdoor IP Camera for Home/Shop 1.0/1.3MP

5.0/5 rating 1 vote

Spend less money on video surveillance system for home/shop. EW1012K3-D is a small compact size IP camera for both indoor and outdoor IP camera system. Similar to other IP camera, it adopts 1.0 megapixel progressive scan CMOS image sensor to deliver 1280x720 HD video. Although 1.0 megapixel resolution isn't an ultra high definition, it still can provide you detailed images that allow you to identify face, car plate number, any other suspicious people/events.

Other features include H.264 codec dual streaming can allow user to record smooth video in HD resolution, while broadcast stream over Internet with standard D1 resolution. Greatly reduced the network bandwidth usage, you can simply connect it to your home/shop router. Built-in 36pcs IR black Infrared LEDs to capture images in low light and at night, with the ability to see in the dark up to 65 feet, can be added with Power over Ethernet (PoE) module for easy installation.

Additionally, it supports motion detection, when detects motion within the field of view, the camera can start to record or send Email alert with snapshot, it also supports privacy zone masking to allow user to keep desired areas private. EW1012K3-D is ONVIF compliance network camera, it works with third-party's NVR and NAS, VMS. ONVIF defines a common protocol for the exchange of information between different network video devices from different manufacturers, to allow greater interoperability in multi-vendor network video systems.



Primary Features

  • Compact size design IP cam for Home/Shop/Office
  • 1/3" progressive scan CMOS Image Sensor
  • Megapixel resolution 1.0 MP and 1.3 MP
  • Horizontaol/vertial resolution 1280x720, 1280x960
  • Automatical day/night with ICR filter
  • 2D Digital Noise Reduction (2D DNR)
  • Up to 65 ft night vision distance
  • Support digital wide dynamic range (D-WDR)
  • Equipped with 3.6mm fixed-focal lens
  • H.264 Video Compression
  • Multiply network protocols TCP/IP, HTTP, DHCP, UDP, RTSP, uPNP..and more
  • Ethernet Interface RJ-45, 10/100, BASE-T
  • Power over Ethernet IEEE802.3af (optional)
  • Motion detection
  • Privacy mask
  • WiFi (optional)
  • Remotely monitoring through PC browsers, Software, Smartphone Apps
  • P2P for cloud connection
  • Alarm Input/Output
  • Working voltage DC12V

Digital IP Technology

It's time to abandon analog camera, choose the IP camera to delivers sharp, high quality images for video you can count on. Works standalone to secure your house, shop, office, or works with professional network video recorder to setup a complete video monitoring & recording surveillance system.

IP vs Analog solution

High Definition Video Monitoring

Utilizing progressive scan method to provide high definition images, you will never miss the important details on the video footage. Keep an eye on your home and business with this HD camera at 24 hours. Capture clear, sharp images in low light.

1.3MP vs 2MP vs 3MP Resolution

Hassle-free Remote View

This camera supports many different remote access method, user can access the camera through different platforms including Windows PC, IE browsers, Android Smartphone, iPhone, iPad. Furthermore, it supports "Peer to Peer" (P2P) technology for easy network connection. No port forwarding, No DDNS, you can watch the live video instantly.

Remote view from PC and smartphone


Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.

Technical Specification

Model No. EW1012K3-D
Camera Type IP Camera
System Embedded RTOS design
Camera Effective Pixels 1.0 Mega Pixels
Main stream:1280*720,704*576;
Sub stream:704*576,352*288;
Frames Rates PAL: 25fps 1280*720/704*576;
NTSC: 30fps 1280*720,704*576;
Image Sensor 1/4"Progressive Scan CMOS Image Sensor
OV9712 1.0 megapixel resolution (720P)
DSP Dual core   32-bit DSP Dual core
HI3518E
Min. Illumination Color: 0.1Lux @(F1.2,AGC ON),0 LUX with IR
B/W 0.01 Lux @ (F1.2,AGC ON),0 LUX with IR
Adjust Parameters DWDR, BLC, DNR, AE, AGC, Day&Night, Mirror,Flip,etc.
Video Compression H.264 Main profile
Stream support dual stream,AVI format
Bit Rate support 0.1M ~6Mpbs bit rate adjustable
Frame Rates support 1~30fps adjustable
Audio Input and output 1CH  input( microphone), 1CH  output( Speaker&microphone) Optional
Compression G.711 compression,support two-way audio intercom,support audio and video synchronized   output
Alarm Types Motion Detection, Video Blind , Video Loss
Network WEB Browser Support   WEB   remote   config( IE, Safari, Google Chrome, Firefox etc.)
Smart Phone Mobile remote Monitoring (iPhone, Android, Windows Mobile, BlackBerry,Symbian)
CMS Software Uniform CMS Software(multiple   devices   management   system)
Cloud P2P www.p2pipc.net,MYEYE platform and other program,Offer SDK
Network 1   *   RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
ONVIF Support (ONVIF 2.0)
POE Support(optional)
WIFI N/A
General Language 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai,   S-Chinese, T-Chinese and Turkish
IR Cut Filter Set of double light switch IR-CUT filter
Lens Mount Varifocal Lens 3.6mm
Infrared Luminary 36pcs Infrared Illuminators
Infrared Wavelength 850 nm
Illuminate Distance More than 30 meters
Waterproof Criterion IP67
I/O Connector 1*DC Connector ,1* RJ45(10/100M Network)
Supplied Voltage DC12V/PoE(802.3af)
Power Consumption IR On: 600mA max., IR Off: Less than 200mA
Working Environment -10°C~+60°C, 10%~90% ( Built in Heater being optional added for environment lower than -20° )
Dimensions 200*100*85mm
Weight 1kg
