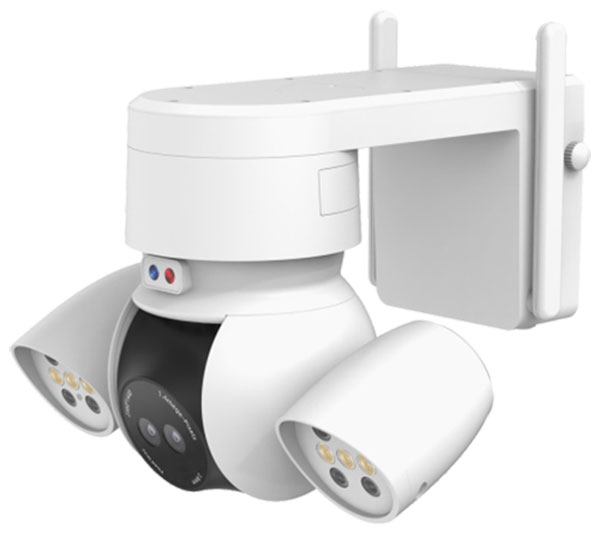

JZ-4KPTG

Dual lights (Floodlight + Infrared light), Dual lens (4mm+8mm), 4K UHD Resolution, built-in 4G LTE Modem to Support Cellular Network Connection, 2.4G Wi-Fi and 10/100Mbps Ethernet (RJ45) Design, Pan 0~355° rotation, Tilt 90~160° Rotation, 2x Optical Zoom, Featuring Face Detection and Capture, Pet Recognition, Humanoid Detection, Sound Alarm, Crying Alarm, microSD/SDHC Memory Card Slot, Cloud Storage, IP66 Rated Weatherproof Design, DC12V 2A Power Input

• 4G LTE (European/North American version) cellular network communication
• Dual lights (Infrared LEDs + 5000K white light LEDs) design
• Dual lens (4mm/8mm, 2K+2K image) optical zoom function; good view of details in the distance
• AI function: human detection/sound siren/crying siren/ face capture / pet recognition
• Separated IR and white dual light source design, easy heat dissipation
• Up to 82-98FT/25-30m ultra long infrared night vision distance
• PTZ rotation: Horizontal 0~355°, vertical 90~160°
• Alarm light flashes and notification push of alarm sound
• Two-way audio intercom
• Screenshot, video file and timeline playback, easy to retrieve
• Easy to install and uninstall
• RJ-45 Ethernet port, TF card slot, power port, reset button
• Scan QR code to download APP, easy to register and connect 4G or network cable, hotspot
• Multi users sharing
• Prompt alarm notification push
• Multiple APPs: Tuya / Alexa (optional) / Google home (optional)
• IP66 waterproof Cloud storage

Product Highlights


4K Ultra HD resolution outdoor PTZ dome camera with AI function
Dual lens design 4mm + 8mm, optical zoom function, retaining details after zoom in, more delicate and clearer image
4G cellular network connection (European/North American version), suitable for remote area where Wi-Fi is not available
Dual light design, Infrared LEDs to provide good night vision, White lights to deter intruders and enable camera to capture color video at night.

 Unique AI function, face detection and capturing, pet recognition, motion detection
One camera equals four cameras, pan rotation 0~355°, tilt rotation 90~160°
Including alarm LED design, it keeps flashing when alarm is triggered
Two-way audio intercom, snapshot, record video files and timeline playback, easy to retrieve.

Product Parameter

• Model Number: JZ-4KPTG
• Operating system: RTOS low power consumption
• Camera: Plug-in Outdoor PTZ Dome Camera with Dual Lights and Dual Lens
• Resolution: 4K Ultra HD
• Chipset: 4K Ingenic T40 SoC
• Image Sensor: 2K low illumination CMOS sensor
• Lens: 2K + 2K f4mm + f8mm lens, 80 degree Field of View
• 4G Cellular: European / North American version
• Rotation range: Horizontal 0~355°, vertical 90~160°
• Network access: Add camera by scanning QR code
• iOS/Android App: TuyaSmart / Smart Life
• Multi-users: Maximum 5 users
• Recording and Playback: support timeline, video file playback and download
• AI function: human detection / sound alarm/crying detection
• Upgrade: Online upgrade
• Cloud storage: support
• Amazon alexa: support, optional
• Google Home: support, optional
• Infrared night vision: 8 IR LEDs, 6 white lights, infrared distance 82-98ft/25-30m
• IR-CUT: Yes, day & night, color & black white switching
• Minimum illumination: 0 LUX/F1.2 while IR is on
• Audio encoding: G.711
• Audio: Two-way audio intercom
• Audio input: High sensitivity microphone
• Audio output: Hi-Fi Speaker
• Alarm light: Alarm flashes when humanoid is detected
• Alarm sound: Alarm can be generated when humanoid is detected
• Ethernet: 10/100Mbps RJ45
• Reset button: Yes
• Waterproof standard: IP66
• Bracket: Yes, simple installation, with wall mounting bracket
• Working voltage and current: 12V/2000mAH
• Working temperature: -10℃－＋55℃
• Product size: 233mm x 210mm x 190mm
• Netweight: 1780g
