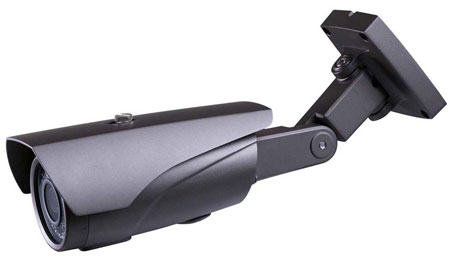

Full HD 1080P Outdoor Network Camera IMX323 Hi3516C
EW2023K4-D is an outdoor day/night security network camera that utilizes Sony IMX322 low light CMOS image sensor to deliver high quality image with 1920x1080 resolution. It's based on Hisilicon Hi3516C SoC architecture to provide low video latency video stream with H.264/MJPEG video compression.
EW2023K4-D is a cost-effective 2 megapixel IP camera designed for both indoor and outdoor network video surveillance system. It's equipped with a vari-focal lens 2.8mm ～ 12mm that allows you to adjust field of view for different installation environment. This network camera adopts rugged aluminum housing, full sealed design provides exclusive IP67 weatherproof protection to ensure the network camera can withstand extreme weather conditions for reliable and long-term operation. It comes with 4-Axis swivel bracket for easy ceiling and wall mount installation.
IMX323 comes from Sony Exmor CMOS image sensor portfolio. It's a newly developed 2.43 megapixel image sensor that adopts a 3.45 µm unit pixel manufacturing technology to provide high sensitivity performance and high signal-to-noise ratio (SNR). Utilizing the IMX322, EW2023K4-D can achieves high picture quality, high resolution even in low illumination lighting environment.
Hi3516C is a digital media system on chip (SoC) designed for professional HD network cameras. Hi3516C based on ARM926 powerful CPU that offers 2 megapixel @ 30fps video encoding with H.264 compression. Apart from DWDR, 2DNR, BLC, HLC, the Hi3516C provides motion detection, privacy mask, as well as advanced video analytics such as face recognition, perimeter detection, missing object detection etc. Based on Linux OS, the EW2023K4-D supports P2P cloud connection, using the free smartphone App, you can instantly access IP camera without DDNS and port forward configuration. Lastly, EW2023K4-D complies ONVIF 2.4.2 protocol, it works with network video recorders and video surveillance software from third-party manufacturers.
Primary characteristics
- IP67 for indoor/outdoor video surveillance
- 2.43 megapixel CMOS image sensor with high sensitivity
- Delivers HD images/video with 1920x1080 resolution @ 0-25fps
- Built-in IR-CUT filter to provide true day/night surveillance
- Excellent low light performance
- Equipped with 2MP 2.8mm ～ 12mm VF lens, approximate 72°～ 22°view angle
- Comes with 42 pieces black Infa-red illuminators
- IR illumination distance up to 40 meter
- Smart IR technology to avoid IR-saturation
- Hi3516C architecture, H.264/MJPEG dual codec
- Supports RTSP, play video stream on VLC & Quicktime player
- Motion detection, privacy mask
- P2P cloud connection
- Web server, Smartphone App
- Free CMS software
- Complies ONVIF 2.4.2 protocol
- Built-in microSDHC/TF card slot up to 128G
- DC12V 1.5A or PoE (IEEE802.3af)
- WiFi 802.11b/g/n
Future-proof digital video surveillance technology
Utilizing the latest CMOS image sensor and video CPU to capture full high definition video with high clarity. Offering bank security grade video monitoring back with advanced IP video streaming technology. Full HD video recording, easily remote watch real-time HD video anywhere, anytime.
Full HD 1080p video surveillance
Feeling despaired to conventional analog security cameras? 2.0 megapixel resolution equals 1920x1080, which is five times higher than 700 TVL Lines (960H) resolution. It provides you much larger image size, also much better quality when compared with analog security cameras.
Remote View from PC and Smartphone
Based on P2P (peer to peer) technology, support plug-and-play installation. No DDNS and port forwarding required. User can access the IP camera through its web interface via Internet Explorer, Chrome, Firefox, Safari, also comes with a free smartphone App (Android & iPhone) for remotely view from anywhere.
Get our latest price list
Subscribe to get the latest updates.
Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.
IMX323 + Hi3516C Sample Video
Technical Specification
| Model No. | EW2023K4-D | |||
| Camera Type | Outdoor Day/Night IR Bullet Network Camera | |||
| System | Embedded RTOS design | |||
| Camera | Effective Pixels | 2.43 megapixel | ||
| Main stream:1920*1080;1280*720 | ||||
| Sub stream:704*576 | ||||
| Frames Rates | PAL:30/25fps(1920*1080)/(1280*720) | |||
| NTSC:30fps(1920*1080)/(1280*720) | ||||
| Image Sensor | 1/2.9" Progressive Scan CMOS Image Sensor (Sony Exmor IMX323) | |||
| Approx. 2.0 Mega pixels resolution (1080P) | ||||
| DSP | Dual core 32-bit DSP Dual core | |||
| (Hi3516C) | ||||
| Min. Illumination | Color: 0.01Lux @(F1.2,AGC ON), 0 LUX with IR | |||
| B/W 0.001 Lux @ (F1.2,AGC ON), 0 LUX with IR | ||||
| Adjust Parameters | DWDR, BLC, DNR, AE, AGC, Day&Night, Mirror,Flip,etc. | |||
| Video | Compression | H.264 Main profile | ||
| Stream | support dual stream,AVI format | |||
| Bit Rate | support 0.1M ~6Mpbs bit rate adjustable | |||
| Frame Rates | support 1~30fps adjustable | |||
| Audio | Input and output | 1CH input( microphone), 1CH output( Speakerµphone) Optional | ||
| Compression | G.711 compression,support two-way audio intercom,support audio and video synchronized output | |||
| Alarm | Types | Motion Detection, Video Blind , Video Loss | ||
| Network | WEB Browser | Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.) | ||
| Smart Phone | Mobile remote Monitoring (iPhone, Android, Windows Mobile, BlackBerry,Symbian) | |||
| CMS Software | Unifore CMS Software(multiple devices management system) | |||
| Cloud P2P | P2P Cloud, MYEYE platform and other program, Offer SDK | |||
| Network | 1 * RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP | |||
| ONVIF | Support (ONVIF 2.4.2) | |||
| POE | Support(optional) | |||
| WIFI | N/A | |||
| General | Language | 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish | ||
| IR Cut Filter | Set of double light switch IR-CUT filter | |||
| Lens Mount | Vari-focal Lens 2.8-12mm(2MP) | |||
| Infrared Luminary | 42 pieces Black IR-LED | |||
| Infrared Wavelength | 850 nm | |||
| Illuminate Distance | More than 40 M | |||
| Waterproof Criterion | Outdoor IP67 | |||
| I/O Connector | 1*DC Connector ,1* RJ45(10/100M Network) | |||
| Supplied Voltage | DC12V/PoE(IEEE802.3af/IEEE820.3at) | |||
| Power Consumption | IR On: 600mA max., IR Off: Less than 200mA | |||
| Working Environment | -10°C~+60°C, 10%~90% (Built in Heater being optional added for environment lower than -20°) | |||
| Dimensions | 200*100*85mm | |||
| Weight | 1kg | |||
Product Dimension
