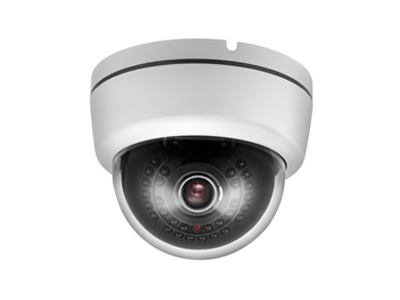

Full HD 1080P Indoor Dome Camera PoE Wi-Fi

Full HD 1080P Indoor Dome Camera PoE Wi-Fi

4.5/5 rating (2 votes)

ED2024V3-F is another in our newly released Hisilicon enabled HD IP cameras. This camera adopts 1/2.7" progressive scan CMOS image sensor OV2710 from Omnivision. Compared with traditional interlaced scan CCD, the progressive scan technology can provide you much better image quality, and effectively reduce the motion blur.

ED2024V3-F is a full HD 1080P HD IP camera, it delivers maximum 1920x1080 resolution, which currently the new standard image quality for today's HD video monitoring. 2 megapixel resolution is 6 times higher than D1 resolution (704x480).

Furthermore, this camera has an vari-focal lens (2.8mm  - 12mm), users can adjust the field of view for different video monitoring application. It supports manually zoom in/out, either provide large view angle or narrow view angle. Every IP camera can work standalone, it has embedded with Linux OS dedicated to provide video capturing, encoding and streaming functions. Maximum allow ten users to access the IP camera through its web interface. Lastly, this camera is compliant with Onvif protocol, works with third-party's video management software and NVRs.

Primary Characteristics

  • Ideal for indoor monitoring
  • 2.0 Megapixel Progressive Scan CMOS Image Sensor (OV2710)
  • Deliver HD images/video at 1920x1080@0-30fps
  • Built-in ICR for true day/night surveillance
  • Excellent low illumination performance
  • Adjustable field of view with an vari-focal Lens (f=2.8~12mm)
  • Equipped with 30 pcs black infrared LEDs
  • Effectively reduce red glow effect
  • Night vision up to 20 - 30 meters (Smart IR)
  • Hi3516C Hisilicon solution, H.264 codec
  • Dual streaming technology
  • Supports plug and play feature with P2P
  • Network protocols: RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
  • Vandal-resistant design
  • Indoor/Outdoor installation
  • 4-axis inner rotation design
  • Working voltage DC12V
  • Onvif compatible
  • Local MicroSD card storage, Maximum 128G (optional)
  • Power over Ethernet, PoE (optional)
  • Wi-Fi 802.11b/g/n(optional)

IP video stream technology

Offering bank security grade video monitoring back with advanced IP video streaming technology. Exclusive vandal-proof dome design, comes with compact size. It's ideal for indoor monitoring application, can perfectly mount on ceiling or wall. Camera module sit on 4-Axis rotation structure to provide you ideal view angle.

IP vs Analog solution

2.0 Mega Pixels Resolution

2.0 megapixel vs 700 TV Lines, which is better? 2.0 megapixel resolution equals 1920x1080, which is five times higher than 700 TVL Lines (960H) resolution. It can provide you much larger image size, also much better quality when compared with analog security cameras.

1.3MP vs 2MP vs 3MP Resolution

Wi-Fi, PoE, Edge Storage

Allow user to expand its function. You can choose to add PoE module, which allows user to setup a cost effective IP camera solution, merely using one Ethernet cable to connect IP camera with your NVR or PoE switch. Wi-Fi module can be added to provide you Wi-Fi wireless network connection. Additionally, you may insert a SD card for edge video storage.

MicroSD/SDHC SD card slot on IP Camera

Remote View from PC and Smartphone

Based on P2P (peer to peer) technology, support plug-and-play installation. No DDNS and port forwarding required. User can access the IP camera through its web interface via Internet Explorer, also offering you free smartphone App for remotely view from anywhere.

Remote view from PC and smartphone

Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.


Technical Information

Model No. ED2024V3-F
Camera Type IP  Vandal-Resistant Dome Camera
System Embedded RTOS design
Camera Effective Pixels 2.0 Mega Pixels
Main stream:1920*1080;1280*720
Sub stream:704*576
Frames Rates PAL:30/25fps(1920*1080)/(1280*720)
Image Sensor 1/2.7"Progressive Scan CMOS Image Sensor (Omnivision OV2710)
Approx. 2.0 Mega pixels resolution (1080P)
DSP Dual core   32-bit DSP Dual core
Min. Illumination Color: 0.01Lux @(F1.2,AGC ON), 0 LUX with IR
B/W 0.001 Lux @ (F1.2,AGC ON), 0 LUX with IR
Adjust Parameters DWDR, BLC, DNR, AE, AGC, Day&Night, Mirror,Flip,etc.
Video Compression H.264 Main profile
Stream support dual stream,AVI format
Bit Rate support 0.1M ~8Mpbs bit rate adjustablesupport 0.1M ~8Mpbs bit rate adjustablesupport 0.1M ~8Mpbs bit rate adjustable
Frame Rates support 1~30fps adjust support 1~30fps adjust support 1~30fps adjust
Audio Input and output 1CH  input( microphone),1CH   output( Speaker&microphone) Optional
Compression G.711 compression,support two-way audio intercom,support audio and video synchronized   output
Alarm Types Motion Detection, Video Blind , Video Loss
Network WEB Browser Support   WEB   remote   config( IE, Safari, Google Chrome, Firefox etc.)
Smart Phone Mobile remote Monitoring (iPhone, Android, Windows Mobile, BlackBerry,Symbian)
CMS Software Uniform CMS Software(multiple   devices   management   system)
Cloud P2P P2P Cloud, MYEYE platform and other program, Offer SDK
Network 1   *   RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
ONVIF Support (ONVIF 2.0)
POE Support(optional)
General Language 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai,   S-Chinese, T-Chinese and Turkish
IR Cut Filter Set of double light switch IR-CUT filter
Lens Mount Varifocal Lens 2.8-12mm(2MP)
Infrared Luminary 30 pieces Black IR-LED
Infrared Wavelength 850 nm
Illuminate Distance More than  20 M
Waterproof Criterion Indoor Only
I/O Connector 1*DC Connector ,1* RJ45(10/100M Network)
Supplied Voltage DC12V/PoE(IEEE802.3af/IEEE820.3at)
Power Consumption IR On: 600mA max., IR Off: Less than 200mA
Working Environment -10°C~+60°C, 10%~90% (Built in Heater being optional added for environment lower than -20°)
Dimensions 200*100*85mm
Weight 1kg
