BC-HC11D / BC-HC12D / BC-HC13D

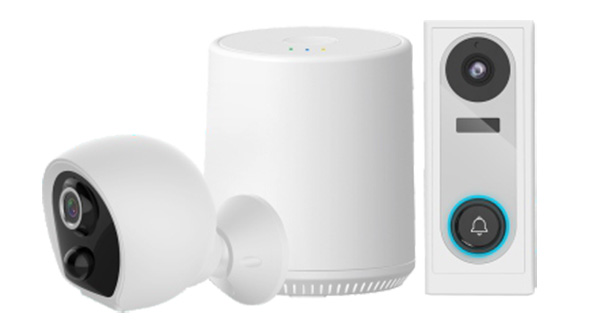

Wireless camera system kit includes smart cameras and smart doorbell plus Homebase, video surveillance plus answering door anywhere anytime. Completely wire-free system up to 300 meters Wi-Fi range, 1080p FHD resolution, built-in PIR motion sensor, accurate motion detection, based on Tuya IoT platform, compatible with TuyaSmart / Smart Life app

• The HomeBase is connected with router via network cable; therefore the system will never get disconnected.
• Up to 984ft/300m long wireless transmission distance between HomeBase and cameras
• The HomeBase is equipped with TF card. Images are stored locally without privacy concerns.
• Support Amazon Alexa smart screen; users can directly voice control Alexa to show the camera and talk with people in the camera
• Support Tuya; manage all your smart devices in one APP
• 5200/14100mA battery optional, long standby time for several months (alarm wakes up cameras 10 times / day, 10 seconds / time)
• PIR detection zone: 6.5~9.8ft / 2~3m installation distance from the ground; 33ft / 10m detection distance 33ft/10m infrared night vision distance
• Motion detection &PIR human siren can be selected
• 3 working modes: power saving, best monitoring, self-define
• Multi users sharing; timeline playback, easy to retrieve
• Cloud storage
• IP66 waterproof

Specification

 Model number: BC-HC11D (HomeBase x1, Cameras x1, Doorbell x1) BC-HC12D (HomeBase x1, Cameras x2, Doorbell x1) BC-HC13D (HomeBase x1, Cameras x3, Doorbell x1)

HomeBase

• Operation OS: Embedded Linux operating system
• Wireless WiFi: Router WiFi high power chip set
• WiFi distance: 984ft/300m in open space
• Camera numbers: 1~4 cameras
• Camera adding: Via paring button on HomeBase
• Interface: Power supply, USB, RJ-45
• Speaker: 8Ω2W Hi-Fi Speaker
• Storage: Built in 32G TF Card
• Alarm: Loud alarm sound on detecting human
• Internet access: Connect via network cable, then use APP to scan QR code
• APP: TuyaSmart / Smart Life
• Amazon Alexa: Support
• Multi-users: Yes, can be shared by 5 users maximum
• Recording and playback: Support timeline, video file playback and download
• Working mode: At home/out/defense/etc
• Size: 95mm x 95mm x 116mm
• Voltage and current: 12V1A/190ma
• Power consumption: 2.5W

Wire-free Camera

• Operation System: RTOS low power consumption
• Resolution: 1080P，1920X1080
• Chipset: JZ
• Image sensor: 1/2.7 low illumination CMOS
• Lens: 2.8mm lens, 100° angle of view
• Wireless/Wii-Fi: PP wireless transmission
• PIR motion detection: 26-33ft / 8-10m distance, 110° viewing angle, 4.9ft /1.5m installation distance from the ground
• Current on sleep mode: 380uA
• Working current: 220mA
• Infrared night vision: 6 units LED, 0.8W, infrared distance 33ft/10m
• IR-CUT: Yes, day & night, color & black white switching
• Minimum illumination: 0 LUX/F1.2 while IR is on
• Audio encoding: G.711
• Audio input: High sensitivity microphone
• Audio output: Hi-Fi Speaker
• Audible alarm: Loud alarm sound can be triggered when human is detected
• Power on/off switch: Yes
• Type-C interface: Yes, chargeable
• Battery: Yes, with 18650 5200mA rechargeable battery, 14100mA optional
• Reset button: Yes
• Waterproof: IP66
• Bracket: Yes, removable design, convenient for charging
• App: TuyaSmart/ Smart Life
• Amazon Alexa: Support
• Power-save mode: Power saving/best monitoring/self-define
• Size: Camera 85mm x 122mm; Doorbell: 151mm x 60mm
