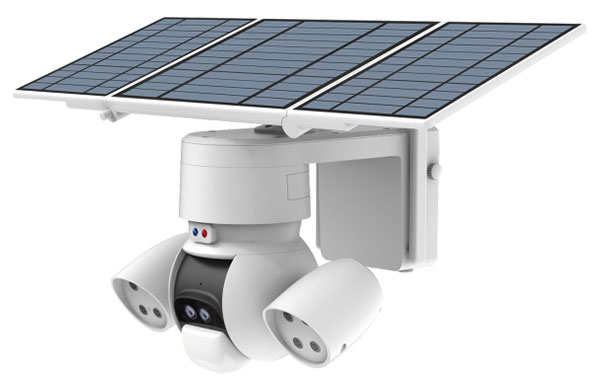

BC-4KPTG

4G LTE (European/North American version)Wireless Outdoor Pan Tilt Dome Camera with Dual-lens, Embedded with AI artificial intelligenc. Dual-lens (with 4mm/8mm, 2K+2K image) image optical zoom function, AI functions such as humanoid detection/sound alarm/cry alarm/face capture/pet recognition. Passive Infrared motion sensor plus microwave radar sensor to provide accurate motion detection. Horizontal/Pan rotation is 0-355 degrees, and the vertical tilt rotation is 90-160 degrees.

• 4G LTE cellular communication, European/North American version
• 2K+2K, 4K resolution, Ingenic T40 SoC
• Dual lens (4mm/8mm, 2K+2K image) image optical zoom function; good view of details in the distance
• AI function: human detection/sound siren/crying siren/ face capture / pet recognition
• Customized special PIR optical path design: 9.8ft / 3m installation distance from the ground; 65ft/20m accurate detection distance; 110°detection range
• Exclusive PIR / radar design, less false alarm, more accurate
• Exclusive ultra long distance infrared and courtyard lamp design
• Exclusive 12W high power foldable solar panel design (optional)
• Wake up instantly if human are detected; stay on sleep mode with super low power consumption
at other times to maintain basic heartbeat function
• Separated IR design reduces impact of PIR heat false alarm; PIR + radar dual detection
improves the wake-up accuracy in extreme outdoor environments effectively
• PTZ rotation: Horizontal 0~355°, vertical 90~160°
• Alarm light flashes and notification push of alarm sound
• 18800ma large capacity battery
• Motion detection & PIR human siren can be selected
• 65~98ft / 20~30m Infrared night vision distance
• Two-way audio intercom
• Screenshot, video file and timeline playback, easy to retrieve
• Easy to install and uninstall
• Multi users sharing
• Multiple APPs: Tuya / Alexa (optional) / Google home (optional)
• TYPE-C USB charging interface, ON/OFF button, TF card slot
• Cloud storage
• IP66 waterproof

Product Parameter

• Model Number: BC-4KPTG
• Operating system: RTOS low power consumption
• Camera: Low power consumption battery, PIR + microwave radar wake up PTZ dome camera
• Resolution: 4K Ultra HD
• Chipset: 4K Ingenic T40 SoC
• Image Sensor: 2K low illumination CMOS sensor
• Lens: 2K + 2K f4mm + f8mm lens, 80 degree Field of View
• 4G Cellular: European / North American version
• Rotation range: Horizontal 0~355°, vertical 90~160°
• Network access: Add camera by scanning QR code
• iOS/Android App: TuyaSmart / Smart Life
• Multi-users: Maximum 5 users
• Recording and Playback: support timeline, video file playback and download
• AI function: human detection / sound alarm/crying detection
• Power-save mode: Power saving priority/monitoring priority/self-define
• Upgrade: Online upgrade
• Cloud storage: support
• Amazon alexa: support, optional
• Google Home: support, optional
• PIR human detection: 65ft/20m distance, 110° view of angle, 10ft/3m installation distance from the ground
• Current on sleep mode: approximate 420uAH
• Infrared night vision: 8 IR dot matrix lights, infrared distance 65ft/20m
• IR-CUT: Yes, day & night, color & black white switching
• Minimum illumination: 0 LUX/F1.2 while IR is on
• Audio encoding: G.711
• Audio: Two-way audio intercom
• Audio input: High sensitivity microphone
• Audio output: Hi-Fi Speaker
• Alarm light: Alarm flashes when humanoid is detected
• Alarm sound: Alarm can be generated when humanoid is detected
• Power on/off switch: Yes
• Reset button: Yes
• Type-C interface: Yes, rechargeable
• Battery: Standard 18800ma large capacity rechargeable battery
• Disjunctive solar panel: Yes, 7.5W/12W optional
• Waterproof standard: IP66
• Bracket: Yes, simple installation, with wall mounting bracket
• Working voltage and current: 5V/200ma
• Working temperature: -10℃－＋55℃
• Product size: 233mm x 214mm x 190mm
• Netweight: 1350g
