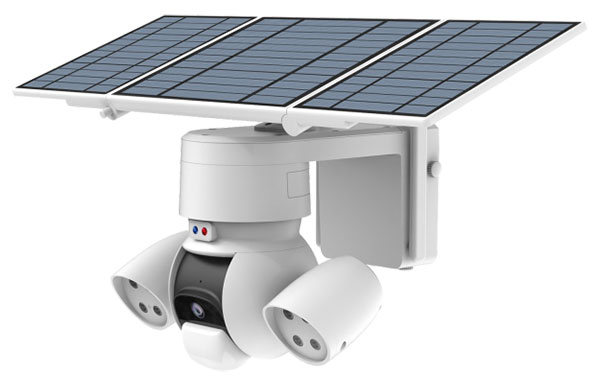

BC-2KPTG

TuyaSmart / Smart Life app, solar panel powered outdoor camera, 4G LTE cellular communication, built-in battery and ultra low power consumption design, built-in PIR motion sensor and microwave radar sensor to offer accurate motion detection, low false detection rate, 2K super HD resolution, long range viewing, microSD/SDHC memory card slot and cloud storage.

• Completely wire-free security camera for remote outdoor application
• Built-in 4G LTE modem to use cellular network, no Wi-Fi is required
• Built-in 18800mAH rechargeable high capacity battery
• Powered by solar panel; 7.5Watt standalone solar panel or 12Watt foldable one
• Ultra low poer consumption, reliable performance
• Dual motion detection includes Passive Infrared sensor and doppler radar
• PIR+Microwave+DSP, triple motion detection, high accuracy low false detection
• Detection range up to 12 meters 110 degree
• 2K super HD crystal clear image, higher resolution, higher image quality
• Advanced and high performance Ingenic T31 SoC supports max. 5MP@30fps
• Wake up instantly when motion detection occurs,stay on sleep mode with ultra low power rate
• AI function, humanoid detection, sound/crying detection, motion detection
• Separate Infrared illuminators design to avoid IR reflection and covers wider area
• PTZ rotation, horizontal 0~355°, vertical 90~160°
• Built-in microphone and speaker
• Deter intruders by turnning speaker on
• Easy to install, maintenance-friendly
• Cloud storage

Product highlight

1. Customized special PIR optical path design: up to 9.8ft / 3m installation distance from the ground; 65ft / 20m accurate detection distance; 110°detection range; exclusive PIR / radar design, less false alarm, more accurate
2. Exclusive 12W high power foldable solar panel design (optional)
3. Wake up instantly if human are detected; stay on sleep mode with super low power consumption at other times to maintain basic heartbeat function
4. AI function: human detection/sound siren/crying siren
5. 18800ma large capacity battery

Solar Panel 7.5W for PTZ Dome Camera



This product is a solar charging package. It receives sunlight during the day, converts it into electric energy, and stores it into the battery, which provides electric energy for the camera.

Working voltage (VMP): 5V
Working current (IMP): 1500mA
Peak Power (PMAX): 7.5W
Silicon wafer: single crystal cell
Chip efficiency: 19.6%
Surface material: ETFE, light and good thermal conversion
Working temperature: -30°C~+75°C

12W Foldable Solar Panel for Outdoor PTZ Dome Camera

This product is a solar charging package. It receives sunlight during the day, converts it into electric energy, and stores it into the battery, which provides electric energy for the camera. Three pieces can be folded into one and packed with the dome camera together, which is very convenient for shipment.

Working voltage(VMP): 5V
Working current (IMP): 2400mA
Peak Power (PMAX): 12W
Silicon wafer: single crystal cell
Conversion rate: 19.6%
Surface material: ETFE light and good thermal conversion
Working temperature: -30°C~+75°C
