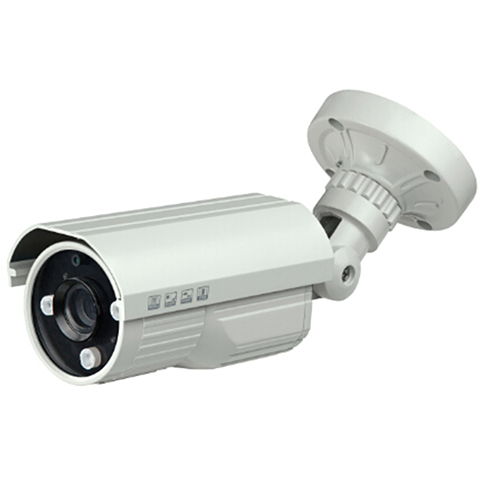

4MP IP Camera 2.8-12mm Motorized Zoom Lens

4MP H.265 IP Camera 2.8-12mm Motorized Zoom Lens

4.1/5 rating (12 votes)

The NS4025V5 is a high-end bullet-type day/night IP security camera that offers long range night vision. It's equipped with 2.8-12mm motorized zoom lens that outperforms most security cameras in the market when you compare image quality, optical zoom, functionality. The equipped with 3 pcs IR array LEDs can provide up to 165ft night vision range. It's based on 1/3-inch OmniVision 4MP progressive CMOS image sensor which can produce video resolution of 2592x1520 pixels. That increases 55% more pixels than 2 megapixel resolution (1920x1080). The motorized lens can automatically adjust the focal length to obtain clear images with high clarity. Meanwhile the lens can be controlled through web interface, smartphones or tablets at the touch of a button to get a detailed view.

The camera is based on OnmiVision HDR CMOS image sensor which can significantly reduce motion artifacts to produce high quality 4 megapixel HDR video under extreme variations of bright and dark conditions. Utilizing Hisilicon H.264+ SoC, this camera supports H.264, H.265, MJPEG video compression and offering 2D-DNR, Mirror, Flip, Motion Detection, ROI smart encoding, Privacy mask, Lens distortion correction, Image stabilizer, Defog, Smart Detection etc features.

4MP icon - IP Camera ICR Filter icon 50M IR icon Alarm I/O icon Audio I/O icon BNC Analog Output icon DNR icon IP66 Weatherproof icon Android icon iPhone icon Privacy Mask icon PoE icon

The NS4025V5 adopts rugged metal housing design with IP66 weatherproof protection, it withstands extreme weather conditions such as dust, rain, snow to be suitable for both indoor and outdoor video surveillance applications. The unique 3-Axis bracket design enables camera to become ceiling/wall mountable with swivel installation angle.

This camera features plug & play internet connection, it comes with Smartphone App, scanning the QR code, users can remotely access the camera through Android and iOS smartphones, tablet. It complies with ONVIF Profile S and RTSP video streaming protocol, working with NVRs and NAS.

4MP (2592X1520) ; 3MP (2048x1520)

This Super HD network camera features 1/3-inch CMOS progressive-scan image sensor that delivers up to 4.0 megapixel resolution at 15 frames per second (fps). 4 megapixel resolution is two times larger than full HD 1080p resolution, higher resolution gives you the ability to enlarge an image and see critical details at a greater distance than before. Alternatively, you can choose to use 3MP or 1080P resolution modes.

4MP vs 1080P vs 720P
4MP vs 1080P vs 720P

H.265/H.264 Video Compression

Based on Hisilicon SoC architecture, the NS4025VB58 supports H.264 and H.265 video encoding standard. Utilizing the H.265 compression, the data stream is reduced to 50%, so that the camera can save 50% network bandwidth and video storage space. Additionally, it adopts patented self-adaptive bandwidth technology, perfectly solving the network congestion or images with poor quality. So that this camera can automatically adjust the video bit-rate to flexibly adapt to the changes of network bandwidth. This helps to achieve the best image quality and the most efficient video transmission.

H.264+ High Efficiency Video Coding
H.264+ High Efficiency Video Coding

4x Optical Zoom Motorized Lens

Equipped with vari-focal lens enables you to adjust field of view. The camera module adopts 3-axis rotating design, allowing camera to obtain ideal viewing angle for different video surveillance applications. Choosing the vari-focal lens security camera, the installer or technician has the flexibility to change the camera's focal length which meet the customer's preference. This eliminates the requirement of having to physically re-locate or re-install the camera to get the ideal field of view for security camera.

2.8-12mm Vari-focal Lens
2.8-12mm Vari-focal Lens

Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.


Technical Specification

  • 1/3-type 4.0 megapixels Progressive OV4689 CMOS Image Sensor
  • Hisilicon Hi3516D, Linux OS
  • Effective Pixels 2592(H)x1520(V)
  • Excellent Min. Illumination 0.01Lux/F1.2 (Color); 0.001Lux/F1.2 (B/W)
  • Day & night with IR-CUT filter
  • 3 pcs IR Array illuminators, IR range 50 mts
  • 2D digital noise reduction
  • Privacy Masking Up to 4 areas
  • H.264/MJPEG/H.265 video compression
  • Resolution 4MP(2592x1520)/3MP(2048x1520)/1080P(1920×1080)/720P(1280×720)
  • Main Stream  2592x1520(1 ~ 25/30fps)/2048x1520(1 ~ 25/30fps)
  • Sub Stream D1/VGA/QVGA(1 ~ 25/30fps)
  • Bit Rate 32KB ~16Mbps; support VBR; CBR
  • Data Storage Video record; Picture format
  • Trigger Manual; Automatic(motion detection; alarm; schedule; cycle )
  • Alarm data transmission FTP; E-mail; Browser; CMS
  • ONVIF ONVIF Profile S
  • Max. User Access 10 users; IE; Google; Firefox
  • Smartphone App for Windows Mobile; iPhone; iPad; Android
  • Power Supply DC12V / PoE (802.3af)
  • Power Consumption <6W
  • Working Environment -20°C~+55°C; Less than 90% RH


IP Camera Interface

Model Information

Codec Max. Resolution Specification Interface Model
H.264/H.264+ 4MP (2592X1520)@15fps; 3MP (2048x1536)@25/30fps Hi3516D + OV4689 1CH RJ45, 1CH Audio I/O, 1CH DC12V NS4025V5-D
4MP (2592X1520)@25/30fps; 3MP (2048x1536)@25/30fps Hi3516A + OV4689 1CH RJ45; 1CH Audio Input/Output
1CH Alarm Input/Output
1CH Analog BNC Out
1x RS-485; 1x Reset Button
1x USB (Support up to 64GB)

Remark: M = motorized lens, P = built-in PoE function
