1080p AHD/HDCVI/HD-TVI PTZ Speed Dome Security Camera

4MP/5MP AHD/CVI/TVI PTZ Speed Dome Camera 3x Optical Zoom

4.0/5 rating (2 votes)

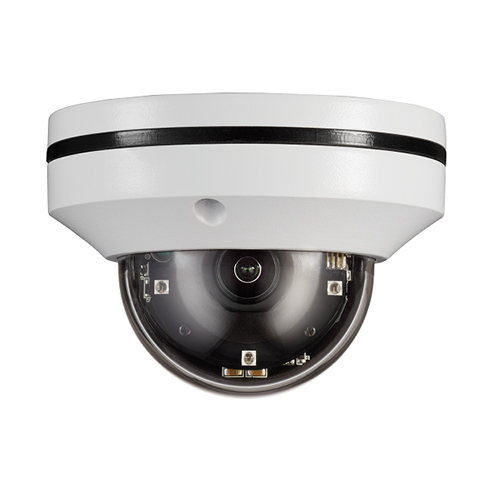

Mini size low profile speed dome camera for discreet installation, it’s a palm size dome camera equipped with zoom block camera to support pan/tilt/zoom function. It’s the right choice for people who looking for a small size camera that provides nearly 360 degree field of view. The camera is sleek and elegant matching decoration of interior building, it can discreetly monitor your property that will not catch attention from intruders. Comparing normal cameras, one single speed dome camera can replace 4 normal cameras to cover every corner of your house/room/hall.

The camera has a 2.8-8mm motorized zoom lens supports auto-focus, it enables camera automatically obtain clear view, can greatly simplify installation by eliminating the necessity of lens adjustment. Besides, it supports 3x optical zoom capability, security operators can zoom in to check details. Unlike fisheye/panoramic camera, optical zoom will enlarge image but retain original high image quality. The dome camera supports 350 degree pan and 90 degree tilt rotation range, supporting 255 programmable preset positions, automatically and smartly rotating by customized scan/tour/pattern.

It relies on OmniVision 5-megapixel CMOS image sensor to capture 2560x1920 resolution video, thanks to its FH8538M high-performance image signal processor, the camera is able to output crystal clear and uncompressed super high definition video with zero latency. Apart from 5-megapixel resolution that maintain 4:3 aspect ratio, it also can output 4-megapixel/2K resolution 16:9 aspect ratio video to fit your HDTV security video camera system. The camera has built-in English OSD-menu, users can easily tweak each settings trough Joystick button on cable or DVR remotely. You can adjust image parameter and turn on/off BLC, HLC, DWDR etc advanced image processing function.

The camera can perfectly work with your digital video recorders no matter it’s AHD, or Dahua HDCVI and Hikvision HD-TVI, or 960H DVR. The camera is an 4-in-1 camera can output super HD video with different signal format. The application of camera is not limited to indoor, the camera adopts IP66 rated weatherproof design and included vandalproof dome cover, it also meet the requirement for outdoor operation. The camera also support night vision, including 3pcs IR array LEDs, IR illumination range is up to 20 meters.


  • Model: HD-203A5
  • Image Sensor: 1/2.7" backside illumination (BSI) CMOS, Omnivision OS05A10
  • Effective Pixels: 2560(H)×1920(V)
  • Video Format: 2560(H)×1920(V) (4:3); 2560(H)x1944(V) (16:9)
  • Zoom: 3X Optical Zoom
  • Lens: 2.8~8mm
  • IR range: 3 pcs IR LED, up to 20m
  • Day&Night: Auto/Day/Night(ICR)
  • Focus: Auto/Manual/SemiAuto
  • AGC: 0~32
  • DNR: Low/Middle/Hight/Off
  • HLC: On/Off
  • Video Output: HD-AHD/CVI/TVI/CVBS 4 in 1 output
  • Pan range: 350° horizontal/pan rotation; speed 80°/sec
  • Tilt range: 0-90 ° mechanical flip
  • Preset: 255 Preset
  • Communication: UTC
  • Operating Temperature: Indoor/Outdoor:-10℃~+50℃
  • Rated Power: DC12V/ Current: 0.8A max
  • Protection grade: IP66
  • Appearance /material: White (black decoration) / aluminum alloy (ADC)
  • Size: Ø 105X 75 mm
  • Weight: 350g

Installation & Dimension

Speed dome camera installation method Speed dome camera dimension/size

Production Status

Available (in production)
