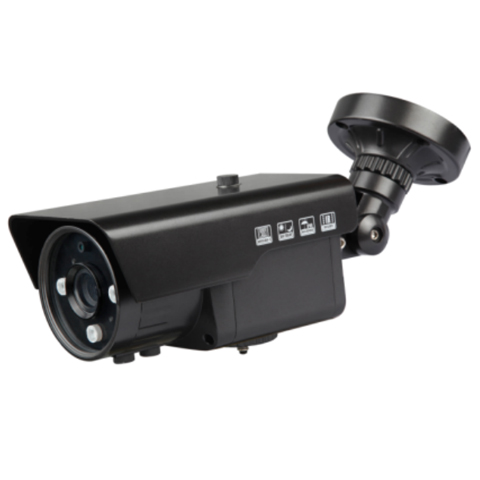

4K/8MP Outdoor IP Security Camera PoE Motorized Zoom Lens

Unifore is pleased to introduce you affordable professional 4K security camera can deliver 4K ultra high definition video and the most advanced functionalities. New 4K series IP cameras adopt exclusive IP66 rated weatherproof housing design, offering up to 50m night vision capability, the product utilizes high performance Hisilicon SoC can support high efficient video codec (HEVC) or H.265 video compression technology that saves approximate 75% network bandwidth and needed storage capacity. Under H.265 mode, the camera can deliver smooth 4K resolution video in 4Mbps bandwidth condition. In addition to 4K resolution, new camera adopts the next generation ISP featuring 2D+3D noise reduction and true color tone reproduction technologies to produce high clarity vivid color image that nearly noise-free.

Comparing with other 4K network cameras, our 4K series outdoor camera is equipped with 3.6mm-11mm manual vari-focal lens which can provide close-up and long shot view. It gives you the best viewing angle when working under diversity application or installation environment. For commercial users, they can choose motorized zoom lens that featuring many benefits including auto-focus, motorized optical zoom capability, simple installation, easy maintenance.

Furthermore, the camera has included intelligent analysis engine (IVE) support cross line detection, region detection (exit/enter), object left and removal detection, object counting with statistical report. It helps you create a high efficient video surveillance system requires fewer security operators, it can inform operators when unwanted event occurs and can prevent possible crimes. The camera is compatible with ONVIF protocol can work with third-party NVR/VMS.

Primary Features

• Dual core 1.27GHz A17 Core processor
• DDR4/3/3L max. 933MHz
• Support maximum 8-megapixel resolution video
• 8MP@15fps (Hi3516AV200),8MP@30fps (Hi3519V101)
• H.265 Main Profile, H.264 BP/M/HP video compression
• MPEG baseline encoding
• Equipped 3.6mm-11mm vari-focal lens (or motorized zoom lens)
• 4x optical zoom capability accompany auto-focus (motorized zoom lens)
• Day/night video surveillance with ICR
• Smart-IR technology to avoid IR-saturation
• 3 IR array LEDs, up to 50M IR distance
• Audio Input/Output
• 2-way audio intercom
• Intelligent IVE, Smart video analytics
• 2D+3D DNS to enhance image quality
• Digital wide dynamic range improves dynamic contrast
• 16x digital zoom capability
• High light/back light compensation
• Lens distortion correction
• Picture mirror and flip
• Picture 90 degree and 270 degree rotation
• ROI smart encoding
• Digital image stabilization
• Defogging
• Motion detection
• Privacy zone
• IP66 rated waterproof
• DC12V power input (802.3af PoE optional)

Complete 4K UHD IP Video Surveillance System

Unifore is able to supply enterprise level 4K IP cameras and 4K network video recorder to allow you easily setup a 4K IP video surveillance system that records 4K resolution video with exceptional image quality. Depends on which model you choose, our NVR can support maximum 24 HDDs and 2 eSATA interfaces for massive data storage. The enterprise level NVR can support RAID 1, RAID 5, RAID 6, RAID 10 redundant storage to avoid data lose due to possible HDD failure.

4K Resolution Video Surveillance

4K UHD resolution is 3840*2160, 16:9 video aspect ratio, under this standard CMOS progressive scan can reach 2160P. 4K UHD network cameras utilize higher performance hardware platform, incorporated with 8 megapixel ultra HD CMOS image sensor, resolution can reach 3840x2160 pixels, which is 4 times higher than 1080P, and 9 times higher than 720p, meanwhile with true color reproduction, highly detailed image quality etc features.

High Efficient H.265 Video Compression

H.265, the next generation video compression technology that has 75% higher compression ratio and retaining the highest image quality than conventional H.264 technology. By using H.265 network cameras, you can greatly lower requirement of network infrastructure, also greatly reduce the number of needed HDDs for video storage. Our H.265 IPC can work with H.265 NVR seamlessly because all of them adopt the same codec standard based on Hisilicon SoC.

Specification
