Smart outdoor IPC supports video analytics/analysis

2MP/5MP Outdoor Network Camera Smart Video Analytics

5.0/5 rating (3 votes)

Unifore professional network cameras featuring advanced video analytics beyond motion detection. Our new series smart camera has embedded video analysis algorithm can support line crossing detection, region detection, unattended baggage & object removal, even people counting.

Line crossing detection: using the mouse to draw virtual lines on monitored area, when a subject crosses a defined line, camera can start to record video or trigger an alarm. This feature is recommended for monitoring the important entering and exiting of people or objects across a threshold.

Unattended baggage & object removal: you’re able to let camera detect whether there is an object has been left behind by a subjects and, conversely, if an object has been taken from the scene. Apparently, this smart video anlaytics function can help to detect if a malicious package has been planted in a public area. For object removal detection, it can help protect valuable objects like shopping package outside of door and trigger an alarm if the camera sees that the package is not longer there.

People counting: it’s a great tool can collect useful data to enterprise solutions. The smart cameras feature people counting can calculate the number of people entering and leaving your room/building and can generate reports show the statistics so that users can quickly get accurate and useful data on visitor volumes. It’s a great feature for retail where supermarkets, shops and shopping centers require precise data on who is visiting their business.

Region detection: allowing you to define monitored areas, can avoid false alarm triggers for example a car travel across the camera’s field-of-view in the distance. Region detection can be used to keep an eye on who is entering and exiting specific restricted areas within a room.

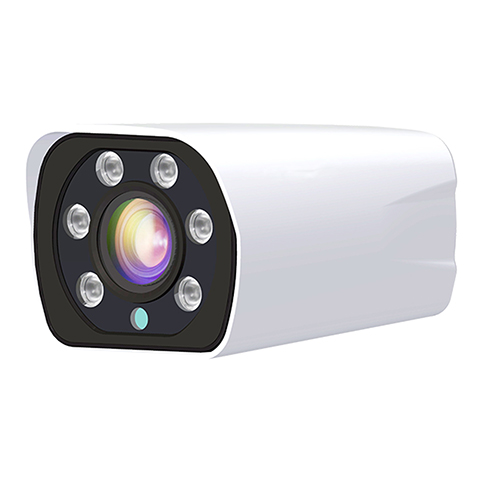

Outdoor IP Bullet Camera with IR

Durable alloy housing design, IP66 weatherproof can withstand rain, dust, wind. Equipped with a 4mm lens (optional 6mm/8mm) to capture clear image with fine details. It includes 6pcs array IR LEDs which enable cameras to see up to 50 meter under low light or even complete darkness environment. It’s a bullet type security camera with large size can provide the best way to deter intruders. It can be easily mounted on wall and pointed to surveillance areas with longer distance view comparing with dome cameras. Consequently, this camera is ideal choice for outdoor video surveillance applications.

H.265/HECV Video Compression

IP cameras can support the latest H.265/HEVC video compression standard.  Without compromising image quality, H.265/HEVC enables camera to deliver stream under constrained network bandwidth, which also in turn can greatly reduce storage consumption. By using this cam, you're able to setup an cost-effective IP video surveillance system which is future-proof. For instance, H.265 IPC can deliver 1080p FHD video stream under as low as 500kb/s network bandwidth, while H.264 IPC requiring approximately 2000kb/s network bandwidth.

H.265 High Efficiency Video Coding
H.265 High Efficiency Video Coding

Lower cost Starvis Performance

Now you can enjoy super starlight performance which is delivered by Sony Starvis CMOS image sensor. 2-megapixel model adopts Sony IMX307 CMOS which offers excellent sensitivity equals to IMX291 under starlight conditions. It’s also a HDR CMOS can capture high clarity and vivid color production image. Incorporating with 2D+3D noise reduction provided by MStar image signal processor, the camera can produce nearly noise free image.

Starvis
Sony IMX307 Super Starlight

2MP or 5MP Super HD Resolution

Say goodbye to conventional 720p/960p network cameras, the camera now delivers 2-megapixel or 5-megapixel resolution video, which image quality is much higher. Now you can upgrade your existing HD IP camera system to super HD sys with minimum investment. Security camera's video capturing capability is primarily determined by its CMOS image sensor and image processor. MStar MSC313E SoC + SC2232/2233 IMX307 CMOS can capture 1080p FHD video, MStar MSC316DM + SC5235 can capture 4-megapixel or 5-megapixel resolution video.

Resolution Comparison
Resolution Comparison

Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.

Technical Parameter

Smart IPC MD-60A70Z-20M1C2-G4 MD-60A70Z-20M1S2-G4 MD-60A70Z-50M2C5-G4
Chipset MStar MSC313E;SmartSens SC2232 MStar MSC313E;Sony IMX307 MStar MSC316DM;SmartSens SC5235
Min. Illumination Color 0.01 Lux@ F1.2, Black-white 0.001 Lux@F1.2 (0Lux, when IR is active)  Color 0.001 Lux@ F1.2, Black-white 0.0001 Lux@F1.2 (0Lux, When IR is active)  Color 0.01 Lux@ F1.2, Black-white 0.001 Lux@F1.2 (0Lux, when IR is active)
IR Distance 40-50M(6 pcs Array IR Light)
Electronic Shutter Auto/Manual(1/25~1/10000),FL
Day/Night Auto/B/W/Color/EXT ICR switching
Lens 4mm Lens (6mm/8mm/2.8-12mm Optional)
Lens Type M12
S/N Ratio ≥50db (AGC inactive)
TV System PAL/NTSC
WDR D-WDR
Video Parameter Mirror, 3D Noise reduction, Sharpness/Lightness adjustable
AUDIO/VIDEO COMPRESSION
Video Compression H.265/H.264/MJPEG
Encoding Main stream: 1920*1080@20fps, 1280*720@30fps, Sub stream: 720*576@30fps Main stream: 1920*1080@20fps, 1280*720@30fps, Sub stream: 720*576@30fps Main stream: 2592*1520@20fps, 2592*1944@15fps, Sub stream: D1@30fps
Effective Pixels 1920*1080 1920*1080 2592*1944
Video Bit Rate Constant bit rate, Variable bit rate optional (32kbps-3Mbps)  Constant bit rate, Variable bit rate optional (32kbps-3Mbps)  Constant bit rate, Variable bit rate optional (32kbps-5Mbps)
Stream Type Complex stream/Video stream
Audio Compression G.711-ulaw/G.711-alaw
NETWORK FUNCTION
Data Storage Video,Image
Storage Mechanism Manual, automatic (cycle, timing, alarm switch, motion detection)
Alarm Data Transmission FTP, E-mail, Browser, Management software
Subtitle Overlay Support overlay for channel name, date and time, stream information, and position is adjustable.
Browser Web browsers, maximum 10 online users
Mobile Surveillance Support iPhone,ipad,Android
Network Protocol TCP/IP,UDP,RTP,RTSP,TRCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP
Port Protocol ONVIF2.4
INTERFACE
Network Interface RJ45 10M/100M network adaptive
GENERAL
Operation Temperature/Humidity -20°C ~ 55°C/0﹪~ 90﹪
Protection Grade IP66
Power Source DC12V / POE optional
Power Consumption <12W
Dimension (mm) Camera:132(L)*84.9(W)*74.4(H)mm; With package:205mm(L)*120mm(W)*105mm(H)
Weight/PCS (g) 600g
Outside Carton 24pcs/carton 。Dimension:520mm(L)*435mm(W)*350mm(H)

Download Sample Video

 MSC313E+SC2232 1080p Resolution Video Codec: MPEG-H Part2/HEVC (H.265) Audio Codec: PCM MU-LAW(mlaw): Sample Video

(It should noted that users should use VLC media player to play H.265 video, other normal media players typically can not playback H.265/HEVC video)

Production Status

Available (in production)
