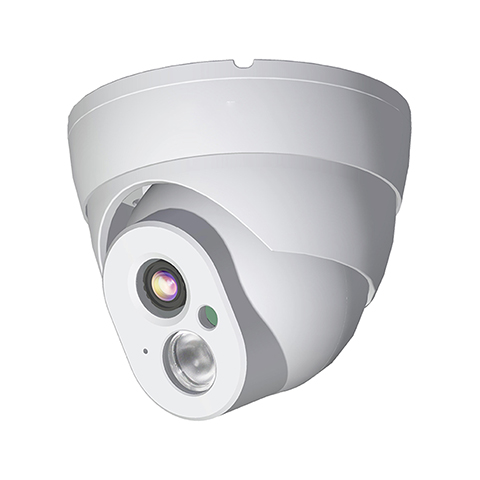

2MP/5MP Outdoor Dome IP Camera SC2232/IMX307/SC5235

2MP/5MP Outdoor Dome IP Camera SC2232/IMX307/SC5235

4.0/5 rating (3 votes)

Unifore Professional Smart Network Dome Camera is from Unifore's new range IP video surveillance cameras - Smart Pro. The camera supports a wide range of smart video analytics such as cross line detection, region detection, unattended baggage and removal detection, people counting. The product relies on FHD CMOS image sensor from SmartSens and Sony to capture full high definition or super high definition video.

SmartSens SC2232 is a 1/2.9" format FHD CMOS image sensor, It’s based on 2.0um pixel unit manufacturing process which greatly reduce the size of CMOS. The smaller of optical size, the better light sensitivity. SmartSens SC2232 can provide excellent low light performance comparing with counterparts. It contains 1936Hx1086V total pixels can achieve 1080p@30fps video raw data acquisition, then convey to image signal processor via DVP MIPI interface.

Sony is renowned by offering the best CMOS image sensors in market. Sony IMX307 is a newly released CMOS image sensor featuring Starvis. Starvis is the trademark owned by Sony, it's a technology improves sensor's sensitivity to near IR wavelength light. By using it, 1080p security camera can offer super starlight performance. It means the camera can see clearly and even capture color image under dim lighting condition. The minimum illumination for Sony IMX307 is 0.001Lux in color, 0.0001Lux in B/W. Without turning on Infrared lights/LEDs, the camera still can see clearly under dim lighting condition. Hence using this camera you can reduce energy consumption, avoid IR light pollution, extend camera's liability as well (since IR LED will generate a huge heat that have a low possibility may damage camera components e.g. CMOS sensor, CPU).

SmartSens SC5033 is a 5-megapixel CMOS image sensor adopting 1/2.7” optical format design. The CMOS offers 2592Hx1944V total pixels, yet support up to 50 frames per second video shooting. Although it’s not the best 5MP CMOS in market, it still performs great by offering crystal clear image with vivid color, and its low light performance is also not criticisable. The cost of SC5035 is lower than counterparts, hence camera manufacturers can produce lower cost 5-megapixel network cameras to better meet customer's satisfaction.

2MP/5MP Super HD Resolution Camera

SmartPro series camera allows users to setup a super HD IP surveillance system with minimum investment. The cameras can provide 1920x1080p resolution video which is currently the standard in market. We also offer 5-megapixel resolution camera can support 2592x1944 (5MP) and 2592x1520 (4MP) resolution. The higher resolution can allow camera to cover a larger area while retaining high image quality.

720p 1080p 4MP 5MP Resolution Comparison
Resolution Comparison

Super Starlight FHD Network Camera

We recommend 2MP network dome camera with Sony IMX307 equipped. The sensor belongs to Starvis portfolio can provide you an impressive super starlight performance. It allows you to monitor indoor and outdoor areas clearly even without using artificial Infrared lighting. The sensitivity is so high, the camera even can capture color image in low light environment.

Sony IMX307 Super Starlight

Smart Video Analytics

Our SmartPro series camera can offer smart video analytics which only provided by professional smart cameras. The camera employs smart video analysis algorithm can analyze video content to act accordingly. It supports cross line detection, loitering detection, region detection, unattended baggage and removal detection, as well as people counting. These features enable camera to reduce of involvement of human, can adequately and smartly protect your premises, also provide useful and accurate data can improve your business.

Smart Network Camera - People Counting
Smart Network Camera - People Counting

Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.

Technical Parameter

Smart IPC MD-60B86A-20M1C2-G3 MD-60B86A-20M1S2-G3 MD-60B86A-50M2C5-G3
Chipset MStar MSC313E;SmartSens SC2232 MStar MSC313E;Sony IMX307 MStar MSC316DM;SmartSens SC5235
Min. Illumination Color 0.01 Lux@ F1.2, Black-white 0.001 Lux@F1.2 (0Lux, when IR is active)  Color 0.001 Lux@ F1.2, Black-white 0.0001 Lux@F1.2 (0Lux, When IR is active)  Color 0.01 Lux@ F1.2, Black-white 0.001 Lux@F1.2 (0Lux, when IR is active)
IR Distance 20-30M(1pcs Array IR LED)
Electronic Shutter Auto/Manual(1/25~1/10000),FL
Day/Night Auto/B/W/Color/EXT ICR switching
Lens 3.6mm Lens (6mm/8mm Optional)
Lens Type M12
S/N Ratio ≥50db (AGC inactive)
Video Parameter Mirror, 3D Noise reduction, Sharpness/Lightness adjustable
Video Compression H.265/H.264/MJPEG
Encoding Main stream: 1920*1080@20fps, 1280*720@30fps, Sub stream: 720*576@30fps Main stream: 1920*1080@20fps, 1280*720@30fps, Sub stream: 720*576@30fps Main stream: 2592*1520@20fps, 2592*1944@15fps, Sub stream: D1@30fps
Effective Pixels 1920*1080 1920*1080 2592*1944
Video Bit Rate Constant bit rate, Variable bit rate optional (32kbps-3Mbps)  Constant bit rate, Variable bit rate optional (32kbps-3Mbps)  Constant bit rate, Variable bit rate optional (32kbps-5Mbps)
Stream Type Complex stream/Video stream
Audio Compression G.711-ulaw/G.711-alaw
Data Storage Video,Image
Storage Mechanism Manual, automatic (cycle, timing, alarm switch, motion detection)
Alarm Data Transmission FTP, E-mail, Browser, Management software
Subtitle Overlay Support overlay for channel name, date and time, stream information, and position is adjustable.
Browser Web browsers, maximum 10 online users
Mobile Surveillance Support iPhone,ipad,Android
Port Protocol ONVIF2.4
Network Interface RJ45 10M/100M network adaptive
Operation Temperature/Humidity -20°C ~ 55°C/0﹪~ 90﹪
Protection Grade IP66
Power Source DC12V / POE optional
Power Consumption <12W
Dimension (mm) Camera: 80.8(H)*Φ93.4(D)mm With package: 110mm(L)*110mm(W)*92mm(H)
Weight/PCS (g) 380g
Outside Carton 36pcs/carton Dimension: 475mm(L)*355mm(W)*305mm(H)

Production Status

Available (in production)
