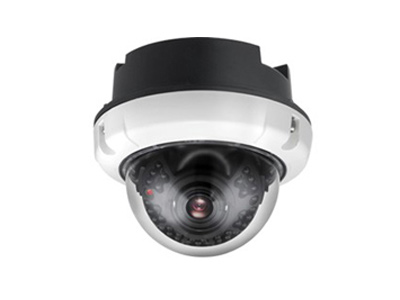

2.0 MP 1080P IP Dome Camera Flush Mount

2.0 MP 1080P IP Dome Camera Flush Mount

4.7/5 rating (3 votes)

ED2023C3-E network camera for HD video surveillance/monitoring application. It adopts flush mount design, perfectly embeds into ceiling floor. This dome camera adopts progressive scan CMOS image sensor from Sony, IMX222 to provide incredible high definition video, along with wide dynamic range (WDR) feature. IMX222 is a 2.8 µm unit pixel (1/2.8" type) image sensor provides approximate 2.43 megapixel resolution.  WDR enables camera to capture balanced images even under challenging lighting conditions.

ED2023C3-E is a 2.0 megapixel IP dome camera, it adopts industrial standard H.264 video codec technology and SoC from Hisilicon. Offering you full HD 1080P (1920x1080) images with crystal image quality. The camera has built-in ICR (IR-CUT) filter, can block the unnatural infrared lights from entering CMOS sensor, hence provide vivid true color reproduction images.

Thanks for its Hi3516C SoC, the camera supports 3D noise reduction, D-WDR, BLC, HLC, motion detection, privacy mask and other smart video analysis function. It allows user to choose video streaming at different resolution including 1920x1080 @30fps, 1280x960 @30fps, 1280x720 @30fps. Additionally, it supports dual stream technology, user can choose to record video with full HD resolution and video streaming over Internet with standard resolution. Therefore, greatly reduce the network bandwidth requirement.

ED2023C3-E has a 2.8-12mm vari-focal lens, and furnished 30 pcs black infrared illuminators round the lens to provide 20 - 30 meters IR range. The camera module sits on a 4-axis rotation structure, allow user user to adjust the camera position to get ideal view angle. Lastly, it's Onvif compliant product, works with third-party's NVRs and VMS including Hikvision, Dahua, Vivotek, Sony, Canon, Panasonic, Axis, Launch, BOSCH, Honeywell and more than 300 different manufacturers.


  • Low illumination IMX222 + Hi3516C Chip-set
  • 1/2.8" Progressive Scan CMOS
  • Color 0.01Lux@F1.2; B/W 0.001Lux@F1.2
  • Main Stream: 1920x1080, 1280x720
  • Sub-Stream: 704x576, 352x288
  • Connector Interface: Power, RJ45, Audio I/O, Alarm I/O
  • Embedded RTOS design, Dual Core 32bit DSP
  • Hardwired H.264 codec, Main/Sub Stream
  • Bitrate 0.1 M - 6 Mbps adjustable; fps 1-30 adjustable
  • Support RTSP/FTP/PPPoE/DHCP/DDNS/NTP/UPnP protocols
  • Aluminum alloy housing
  • Aesthetic flush mount design
  • Included 2.8-12 mm Lens
  • Support Onvif standard
  • Support Cloud monitoring
  • Support P2P
  • Vandal-resistant design
  • IP67 waterproof design

Digital Network IP Camera

Say goodbye to old analog security camera. Enjoy the digital technology brings you the high definition monitoring video, but also advanced smart and interactive video monitoring. It comes with audio I/O to support 2-way voice intercom, alarm I/O to integrate with other security system (including security sensors, access control, NVR, doorbell system...etc).

IP vs Analog solution

Approximate 2.43 mega effective pixels

Utilizing Sony Exmor IMX222 CMOS image sensor offers approx. 2.43 megapixel, delivering full HD 1080P (1920x1080) resolution images. Vivid color plus wide dynamic range function.

1.3MP vs 2MP vs 3MP Resolution

Flexible PoE, Wi-Fi, SDHC/MicroSD

Allow user to expand its function. You can choose to add PoE module, which allows user to setup a cost effective IP camera solution, merely using one Ethernet cable to connect IP camera with your NVR or PoE switch. Wi-Fi module can be added to provide you Wi-Fi wireless network connection. Additionally, you may insert a SD card for edge video storage.

MicroSD/SDHC SD card slot on IP Camera

Remote View From Anywhere

Built-in web server, supports multiple network protocols including RTSP/FTP/PPPoE/DHCP/DDNS/NTP/UPnP. Adopting "Peer to Peer" technology to provide plug-and-play simple installation. Maximum ten online users to access and watch the live video from anywhere. Supports Internet Explorer, PC Software, Onvif Viewer, Smartphone.

Remote view from PC and smartphone

Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.

Model No. ED2023C3-E
Camera Type IP  Vandal-Resistant Dome Camera
System Embedded RTOS design
Camera Effective Pixels 2.0 Mega Pixels
Main stream:1920*1080;1280*720
Sub stream:704*576
Frames Rates PAL:30/25fps(1920*1080)/(1280*720)
Image Sensor 1/2.8"Progressive Scan CMOS Image Sensor (Sony Exmor IMX222)
Approx. 2.43M pixels resolution (1080P)
DSP Dual core   32-bit DSP Dual core
Min. Illumination Color: 0.01Lux @(F1.2,AGC ON), 0 LUX with IR
B/W 0.001 Lux @ (F1.2,AGC ON), 0 LUX with IR
Adjust Parameters DWDR, BLC, DNR, AE, AGC, Day&Night, Mirror,Flip,etc.
Video Compression H.264 Main profile
Stream support dual stream,AVI format
Bit Rate support 0.1M ~8Mpbs bit rate adjustablesupport 0.1M ~8Mpbs bit rate adjustablesupport 0.1M ~8Mpbs bit rate adjustable
Frame Rates support 1~30fps adjust support 1~30fps adjust support 1~30fps adjust
Audio Input and output 1CH  input( microphone),1CH   output( Speaker&microphone) Optional
Compression G.711 compression,support two-way audio intercom,support audio and video synchronized   output
Alarm Types Motion Detection, Video Blind , Video Loss
Network WEB Browser Support   WEB   remote   config( IE, Safari, Google Chrome, Firefox etc.)
Smart Phone Mobile remote Monitoring (iPhone, Android, Windows Mobile, BlackBerry,Symbian)
CMS Software Uniform CMS Software(multiple   devices   management   system)
Cloud P2P www.p2pipc.net,MYEYE platform and other program,Offer SDK
Network 1   *   RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
ONVIF Support (ONVIF 2.0)
POE Support(optional)
General Language 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai,   S-Chinese, T-Chinese and Turkish
IR Cut Filter Set of double light switch IR-CUT filter
Lens Mount Varifocal Lens 2.8-12mm(2MP)
Infrared Luminary 36 pieces IR-LED
Infrared Wavelength 850 nm
Illuminate Distance More than  20 M
Waterproof Criterion IP67
I/O Connector 1*DC Connector ,1* RJ45(10/100M Network), 1* Alarm I/O, 1* Audio I/O
Supplied Voltage DC12V/PoE(802.3af/820.3at)
Power Consumption IR On: 600mA max., IR Off: Less than 200mA
Working Environment -10°C~+60°C, 10%~90% (Built in Heater being optional added for environment lower than -20° )
Dimensions 200*100*85mm
Weight 1.5kg
