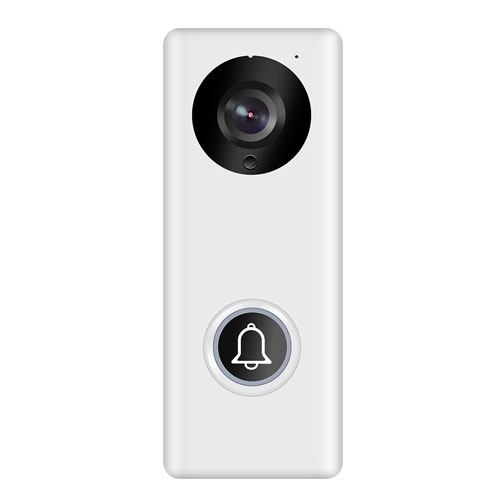

1080p Smart Doorbell Camera/Intercom

SD-M5 is the newly developed and hot-selling smart doorbell with 1080p security camera. The product employs 2-megapixel CMOS and industry-leading Hisilicon Hi3518EV200 SoC processor to capture the video. It can be widely used for smart doorbell and security camera that not only make your life more convenient but also bring you peace in mind. Users can use it to answer door anywhere and watch HD live video through smartphone. The product includes PIR motion sensor design to accurately detect movement of human, hence it eliminates annoying alerts by filtering false detection.

The smart doorbell not only operates as an video intercom system, it works as a video surveillance system that has video recording capability, it accepts max.128GB memory card for edge video storage, it keeps video without requirement of network video recorder and network connection. Furthermore, it complies ONVIF specification, it's able to work with your NVR and NAS.

Product Features

• High quality and high performance Hisilicon SoC
• 2-megapixel/FHD/1080p/1920x1080 video resolution
• H.264/AVC universal video compression
• Day&night surveillance with Infrared LEDs
• Built-in microphone and speaker, 2-way intercom
• Doorbell button design to ring chime
• Send instant push notification multiple users
• Send snapshot email to multiple email boxes
• Wireless/Wi-Fi and Ethernet network connection
• Edge video storage by built-in microSD memory card
• Free app for Android and iOS, free software for Windows computer
• Scalable, can be easily integrated into other system by ONVIF

Product Specification

• Core processor: Hisilicon Hi3518EV200
• Image sensor: SmartSens SC2235
• Effective resolution: 1920x1080
• Resolution format: HD (1920x1080), SD (1280x720), LD (640x360)
• Frame rate: 25fps
• Video compression: H.264/AVC
• OS: Huawei LiteOS
• Lens: 3.6mm full glass FHD lens
• Viewing angle: 150 degree
• Night vision: 10 meter
• Day/night: IR-CUT filter, auto day/night
• Audio: built-in microphone and speaker
• Audio function: 2-way talk/intercom
• Audio codec: G711 alaw
• Wireless network: 802.11 b/g/n 2.4GHz
• Ethernet: 10/100Mbps RJ45
• P2P: Gwell P2P technology
• Stream protocol: RTSP/Onvif 2.5 Profile S
• Remote view: Yoosee App/CMSClient
• Storage: built-in microSD/SDHC/TF memory card slot
• Recording mode: full-time, schedule, motion detection
• Motion detection: 6-level sensitivity adjustable
• Push notification: up to 5 users to receive push notification
• Snapshot: sending snapshot to multiple emails (SMTP)
• Local view: VMS/NVR/DVR/NAS
• Power input: DC 12-36V AC 8-24V
• Power supply: DC12V (AC/DC power adapter) included

1# What’s the app for the smart doorbell?

SD-M5 is based on Gwell’s P2P technology; it has embedded with free P2P protocol from Yoosee. The product uses Yoosee app which is available for both Android and iOS smartphone or tablets. Unlike other app, we also provide free software for Windows OS computers. This means you’re not only able to use the smart doorbell through Android phone or iPhone, you also can use the product on Windows computers. Yoosee app is a well-known and popular security camera application, according to the whitepaper, Yoosee app has more than 20 million users globally. Yoosee app is the second most popular security camera app behind the Hikvision’s ezviz.

• The minimum requirement for Android: 4.1 and up
• iOS: requires 8.0 or later, compatible with iPhone, iPad, and iPod touch
• Windows OS: XP, WIN7, WIN8, WIN 10 32bit/64bit
• Supported multilingual: English, Czech, Dutch, French, German, Indonesian, Italian, Japanese, Korean, Malay, Persian, Polish, Portuguese, Russian, Chinese, Slovak, Spanish, Thai, Turkish, Vietnamese.

2# How to use the doorbell function?

SD-M5 smart doorbell has the Internet connection capability, it can be connected with your home/office router via wireless/Wi-Fi or Ethernet connection. When the visitors press doorbell button, the smart doorbell will make “Dingdong” sound while sending instant push notification alerts. Users are able to answer the door remotely and knowing who is there by the 1080p HD camera. The smart doorbell also can support passive mode, which means once people approach the door and though doorbell button is not pressed, you also can receive the push notification; this function helps you to deter intruders and protect your home away from intrusion effectively.

3# How to use the security function?

The smart doorbell makes you life more convenient, it also incredibly makes your home more secure. It supports motion detection, once someone steps into protected/detecting area, burglar alarm will set off. When alarm occurs, the smart doorbell will start siren/yelling to deter burglars, meanwhile home owners will receive instant push notification. With help of the 1080p HD camera, you will know what exactly is happening in your property, then you’re able to take assertive action to summon aid.

4# How easy to install this product? Should I hire a professional?

Well, the product is super easy to be installed. You can mount the doorbell on door by using the included 3M double-side tape, or screws. Unlike similar product in market, the product supports Power over Ethernet (PoE) feature by using the included PoE injector. PoE feature enables camera to achieve data and power transmission through one Ethernet cable. Merely plugging the Ethernet cable, the device will operate; this eliminates excessive cable layout to simplify installation. To install and setup the device, you don’t need to be a professional. The app is very user-friendly, the device uses P2P for remote view, it doesn’t require complicated network settings.

5# What’s the requirement for network/router?

The device works with nearly 99% network environment. For wireless network connection, it requires 802.3b/g/n 2.4G router, so it works with your dual-band router. When install it ensuring the device is within coverage of Wi-Fi signal, the signal strength should be 4 bar level, if not you can use Wi-Fi booster/extender to overcome it. Alternatively, you can run the Ethernet cable between the device and router, the maximum distance is up to 100 meters, for PoE connection distance limitation is 50 meters. Running Ethernet cable or wired network connection will bring you many benefits; on one hand, you can use PoE to eliminate power cable wiring. On the other hand, you will have a stable and reliable network connection, no worry on wireless interference.

6# Does it work with my Hikvision NVR?

The answer is Yes, it works with your Hikvision DVR or NVR. You’re able to add the device to your Hikvision recorder by using ONVIF protocol. Contrary to battery-powered smart doorbell, our device is able to deliver 24 hours video to your recorder. But, it should be noted that it can’t directly plug to the Hikvision PoE NVR, because smart doorbell’s PoE is non-standard. If you wish to connect it to your Hikvision PoE NVR, please use the provided PoE injector. In addition to Hikvision, it’s compatible with most ONVIF NVRs including brands such as Dahua, Xiongmai, Uniview, 3S, Milesight and so on.

7# Does it work with my network attached storage?

Yes, the product works with Synology surveillance station for Synology NAS, it also works with QNAP NAS. You can add it to your storage devices either using ONVIF or RTSP stream protocol. It supports RTSP, so you even can play real-time video stream on VLC media player or your Android Smart TV.

8# Can I unlock door through smartphone?

The app supports unlock door remotely, to use this function users need to buy a wireless unlock module. The wireless unlock module can communicate with SD-M5, it connects with any kind of electronic lock, users are able to unlock door remotely through smart devices.

9# Does it work with wireless chime?

Yes, the smart doorbell can work with wireless chime receivers. We offer USB wireless chime receivers, the chime receivers make up to 32 kinds of music when doorbell rings. You’re able to select the sound effect, and it can be plugged into your USB port of computer or the cellphone charger.

10# Where to buy this amazing product?

For reselling business, please click chat online on our website to consult with our sales representative, or you may send us a message on contact us webpage. If you are an end user wanna purchase the product online, we do have an online shop. You're able to buy this amazing smart doorbell by clicking this link. The product comes with 1 year warranty, we adopt strict quality control policy to ensure you will receive high quality and non-defective product,the solution and core hardware originally is derived from Yoosee/Gwelltimes, Yoosee is one of the most trustful security camera solution provider in the world.
