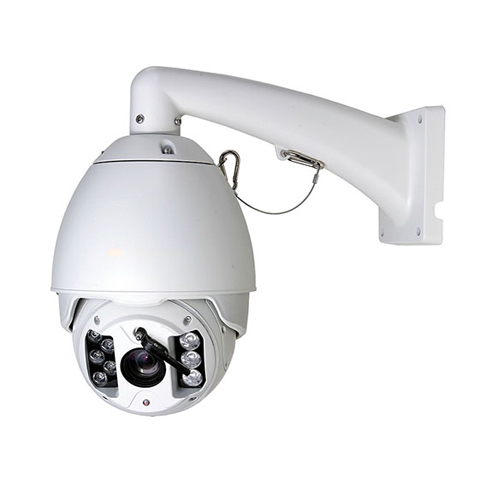

EP2845 is a high quality professional IP PTZ dome camera offering crisp images with full HD 1080P resolution. It supports 20x optical zoom, and 360 degree pan rotation, 180 degree tilt rotation. It's an ideal camera for large area monitoring applications such as commercial building, shopping mall, warehouse, parking lot, traffic and public utilities.
EP2845 is equipped with a powerful zoom camera module which adopted Texas Instruments (TI) Davinci DM368 platform, integrates with Sony latest Exmor 1/2.8 inch progressive scan CMOS image sensor to deliver ultra clear and crisp images up to 1920x1080P in 25/30fps. It has web server, support multiply network protocols including TCP, UDP, IP,HTTP,FTP,SMTP, DHCP,DNS, ARP, ICMP, POP3, NTP and RTSP. Support maximum 10 users online, allow user to access camera through smartphone, tablet and PC Internet browsers (IE, Chrome, Safari, Firefox).
There are many special design on this product. The camera adopts IP66 rated weatherproof rugged aluminum alloy housing to protect camera against corrosion, dust, rain. It has internal heater and fan to maintain working temperature, which allow camera to work in a wide temperature range of between -40 Celsius degree to 55 Celsius degree. It has anti-lightning, anti-surge design which greatly ensure the camera's operation in thunder season. Additionally, this camera has a Lens clean wiper, which can automatically/manually to clean the dust, water drops from lens.
EP2845 is compliant Onvif protocol/standard, it works with more than 3000 different NVRs/VMS from third-party's manufacturers including Axis, Canon, Dahua, Panasonic, Sony, Samsung, Hikvision, Vivotek and more.
Get our latest price list
Subscribe to get the latest updates.
Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.
Download Product Flyer: EP2345/EP2845
Model | EP2845 | |
Name | 1080P HD IP PTZ Dome Camera-Pro version | |
Camera | Image Sensor | 1/2.8" Sony Exmor Progressive Scan CCD |
Effective Resolution | 2 megapixel (1080P:1920*1080P; 720P:1280*720P; D1:640*480) | |
Minimum Illumination | Color 0.1Lux B/W 0.01Lux;IR ON 0Lux | |
White Balance | Manual/Automatic | |
AGC | Manual/Automatic | |
S/N | >50dB | |
Back Light Compensation | Manual / Automatic | |
Electric Shutter | 1/25~1/10,000s | |
Day/Night Mode | Removable IR-cut filter | |
Focus Mode | Manual/Automatic | |
Lens | Focal length | 4.7-84.6mm, 20x optical zoom |
Zoom speed | Estimate 2 seconds | |
Horizontal field of view | 55.2-2.9 | |
Focal number | F1.6-F3.5 | |
Function | Pan rotation | 360°continues rotation horizontally |
Pan speed | Keyboard speed:0.4°/s~300°/s,preset rotation speed:300°/s | |
Tilt rotation | -5°~90° | |
Tilt speed | keyboard speed:0.4°~150°/s,preset rotation speed:250°/s | |
Digital zoom | Support | |
Total number of presets | 128 | |
Cruise | 4 modes, each cruise can add 27 presets | |
Pattern | 4 modes | |
Loss power memory | Support | |
Scan function | Preset /Cruise scan / Pattern scan / Automatically scan | |
Horizontal scan | 4 | |
Port | Alarm Input | 4CH (Optional) |
Alarm Output | 1CH (Optional) | |
USB Port | Audio/USB (Optional) | |
Network Port | 1 RJ45 10/100Base-T port | |
Power Port | 1 | |
Reset button | 1 | |
Network | Network protocols | TCP/IP、HTTP、DHCP、DDNS、PPPOE、FTP、SMTP、NTP、RTP/RTSP |
Security Mode | With account and password protection | |
User authorization | PTZ control、Audio Intercom、Video recording、alarm control、config、playback、check log、Internet view | |
Users | Maximum 10 users online live view simultaneously | |
OSD overlay | 5 different OSD overlay, such as: Date, time, Bit rate, Title | |
Privacy mask | 4 regions | |
Dual streaming | Support | |
Image resolution | Main Stream:1920x1080; 1280×720 Sub-stream:760×480 | |
Audio | Two way audio intercom | |
Video loss alert | Sending E-mail, alarm signal output | |
Motion detection | 8 motion zones, sensitivity:0-9 grade | |
Motion alert | Alarm output、PC event、recording、capture、FTP upload、Send Email | |
Alarm Input | NC/NO | |
Alarm Input alert | Alarm output、PC event、recording、capture、FTP upload、Send Email | |
PTZ protocol | PELCO-D、PELCO-P | |
Common functions | Support PC time sync, remote upgrade, remote reboot, remote reset and local log query | |
General | Power Voltage | DC15V (4A) |
Power Consumption | 25W max | |
Working Temperature | Outdoor:-40℃~65℃, Indoor:-10℃~50℃ | |
Working Humidity | >90% | |
Dimension | Φ250×330mm | |
Weight | ||
Ingress rate | IP66(Outdoor),6000V anti-surge, anti-lightning protection | |
Installation method | Wall mounted or ceiling mounted | |
System requirements | OS:Microsoft Windows XP、Windows 7 Ultimate Edition / Professional Browsers:Internet Explorer, Firefox, Chrome, Opera, Safari |
