Goke HD IP Camera Solution GK7101 GK7102

Based on the latest research by IHS, the market of video surveillance was estimated to be US$15 billion, and it expects to grow to US$23.6 billion by the end of 2018. Now the global video surveillance market is in the transition period from analog to IP. We know SoC/processor is the core component of every IP cameras, although many well-known semi-conductor companies (Ambarella, Hisilicon, TI, Sony, etc) encounter fierce competition in the market of HD video SoCs. As the new comer, Goke Microelectronics launched GK7101 and GK7102 SoCs are dedicated to HD network camera solution.

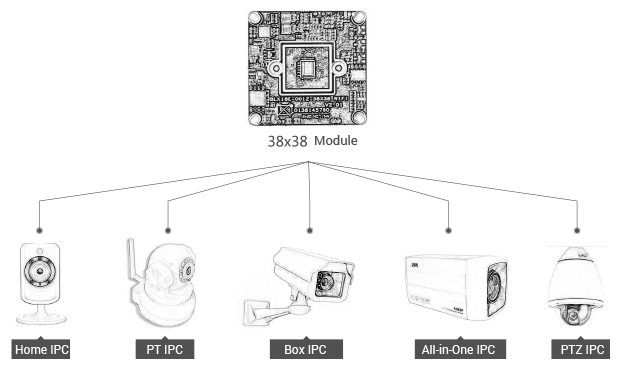

HD Camera SoC for IP Camera Solution
HD Camera SoC for IP Camera Solution

GK7101 is a low power consumption, low-light, highly integrated SoC for full HD IP cameras. This SoC supports 1080P@30fps H.264 multi-stream encoding capabilities, efficient video compression ratio, excellent built-in image processing algorithms and rich intelligent video analysis algorithms. Goke offers SDK package for fast development of GK SoC based IP cameras.

Key Features

  • CPU core: ARM1176 @ 600MHZ, 16KB I-Cache, 16KB D-Cache 40nm process, BGA228 package (11 * 11)
  • High integration: Integrated 1Gb DDR2, Ethernet PHY, Audio Codec, MCU, eFuse
  • Excellent performance ISP
  • Image processing: 3A, WDR, 3D noise reduction, γ conversion, RGB filter, dead pixel correction, black level correction, lens positive survey
  • Motion detection, face detection, to prevent peripheral, remnants recognition
  • H.264 BP / MP / HP, MJPEG / JPEG video encoding
  • G.711 / G.726 / ADPCM / MP3 audio encoding
  • Maximum support 4 encoding processing capacity
  • 1080P @ 30fPs + D1 @ 30fPs + CIF @ 30fPs + 1080P JPEG @ 1fPs
  • Through the I2S interface, Audio Codec built external to a second election
  • Supports 2-way talk
  • Support 8/10/12 bit RGB Bayer input
  • Supports one CVBS output
  • 800mw (including DDR) low power, system standby current 60uA
  • Fast wake-up, supports infrared and wake button
  • AES, DES, 3DES security engine
HD Camera GK7101 + SONY IMX322
HD Camera GK7101 + SONY IMX322

GK7102 is a HD IP camera SoC which offers 960P@30fps or 720P@30fps video encoding with H.264 multi-stream encoding capabilities, it works with Sony, Aptina, OmniVision CMOS image sensors (AR0130, OV9712, H42, SC1035) to delivery 1.3MP or 1.0MP resolution high quality video. This SoC features WDR, 3D noise reduction, lens correction etc advanced image processing technologies, it has P2P protocol for fast remote accessing over smartphones, tablets and PCs.

Key Features

  • CPU core: ARM1176 @ 600MHZ, 16KB I-Cache, 16KB D-Cache
  • 40nm process, BGA228 package (11 * 11)
  • High integration: Integrated 512Mb DDR2, Ethernet PHY, Audio Codec, MCU, eFuse
  • Excellent performance ISP
  • - Image processing: 3A, WDR, 3D noise reduction, γ conversion, RGB filter, dead pixel correction, black level correction, lens positive survey
  • - Intelligence: motion detection, face detection, to prevent peripheral, remnants recognition
  • Encoding performance
  • - Video: Support H.264 BP / MP / HP, MJPEG / JPEG
  • - Audio: Support G.711 / G.726 / ADPCM / MP3
  • Maximum support 4 encoding processing capacity
  • - 960P @ 30fps + VGA @ 30fps + QCIF @ 30fps + 960P JPEG @ 1fps
  • - 720P @ 30fps + VGA @ 30fps + QCIF @ 30fps + 720P JPEG @ 1fps
  • Audio Interface
  • - Through the I2S interface, Audio Codec built external to a second election
  • - When external supports two-channel stereo
  • Video Interface
  • - Support 8/10/12 bit RGB Bayer input
  • - Supports one CVBS output
  • Peripheral Interface
  • - USB 2.0 host / device x1
  • - ETH MAC + PHY X1
  • - UART X3, SPI X2
  • - I2C X2, PWM X4
  • - I2S X2, SDIO2.0 x1, IrDA x1
  • Low Power: 800mw (including DDR), true standby function: System standby current 60uA
  • Fast wake-up: support infrared and wake button
  • AES, DES, 3DES security engine

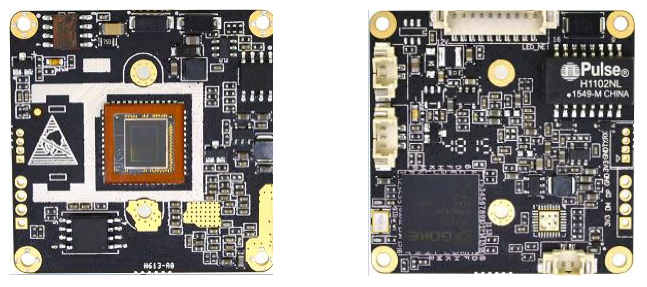

1.3MP HD Camera GK7102 + AR0130
1.3MP HD Camera GK7102 + AR0130
Model No. GK7101 + IMX322  GK7102 + AR0130 GK7102 + H42
Camera Type IP Camera
System Linux or eT-Kernel
Camera Effective Pixels 2.0 Mega Pixels 1.3 Mega Pixels 1.0 Mega Pixels
Main stream:1920*1080 Main stream:1280*960;1280*720 Main stream:1280*720
Sub stream: 352*288 Sub stream: 352*288 Sub stream: 352*288
DDR 1G/DDR2 512MB/DDR2 512MB/DDR2
Frame rate 25-/5fps 25-/5fps 25-/5fps
Image Sensor 1/2.8" SONY Exmor IMX322 CMOS Sensor 1/3" Aptina AR0130 CMOS Sensor 1/4" H42 CMOS Sensor
2.48 megapixel resolution (2000H*1241V) 1.3 megapixel resolution (1280H*960V) 1.0 megapixel resolution (1280*800)
DSP Dual core   32-bit DSP Dual core   32-bit DSP Dual core   32-bit DSP
(GK7101) (GK7102) (GK7102)
Min. Illumination Color   0.01Lux@F1.2 Color   0.01Lux@F1.2 Color   0.6Lux@F1.2
  B/W   0.001 Lux@F1.2   B/W   0.001 Lux@F1.2   B/W   0.08 Lux@F1.2
Adjust Parameters WDR, BLC, DNR, AE, AGC, Day&Night, Mirror, Flip, etc.
Video Compression H.264 Main profile H.264 Main profile H.264 Main profile
Stream support dual stream, AVI format  support dual stream, AVI format  support dual stream, AVI format
Audio Input and output 1CH  input( microphone),1CH   output( Speaker&microphone) Optional
Compression G.711 compression,support two-way audio intercom,support audio and video synchronized   output
Alarm Types Motion Detection, Video Blind , Video Loss
Network WEB Browser Support   WEB   remote   config ( IE, Safari, Google Chrome, Firefox etc.)
Smart Phone Mobile remote Monitoring (iPhone, Android, Windows Mobile, BlackBerry,Symbian)
Cloud P2P Free Smartphone App
Network TCP/IP,HTTP,DHCP,DNS,RTSP,ICMP,RTP,UDP,RTCP,SMTP
ONVIF Support (ONVIF 2.4)
POE Support(optional)
WIFI N/A
General Language Chinese/English
Supplied Voltage DC12V-18V
Power Consumption 120-145mA
Working Environment -30℃---60℃
Dimensions 38*38
